All stock codes associated to this product
H500-KGNN-S00, H500KGNNS00, 4719512124208

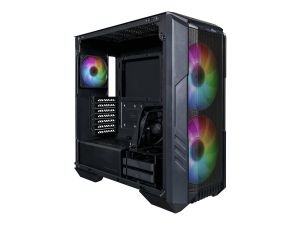

Coolermaster HAF 500 Homecoming Classic Mid-Tower Case -
Black
Overview
- Mesh Front Panel
- Dual 200mm ARGB Fans
- Rotatable GPU Fan
- USB 3.2 Gen 2 Type C Support
- Screwless & Tool-Free TG Side Panel Design
- Removable Top Panel
- Versatile Cooling Options
Specifications
|
EXTERIOR
COLOR |
BLACK |
|
MATERIALS
- OUTLOOK |
STEEL,
MESH, PLASTIC |
|
MATERIALS
- SIDE PANEL |
TEMPERED
GLASS, STEEL |
|
DIMENSIONS
(L X W X H) |
516
X 224 X 510MM (INCL. PROTRUSIONS) |
|
MOTHERBOARD
SUPPORT |
ITX,
MICRO ATX, ATX, SSI CEB, E-ATX*, (*UP TO 12" X 14.1", MAY IMPACT CABLE
MANAGEMENT AND CASE FEATURES, REMOVE CABLE COVER AND GPU FAN BRACKET
FEATURES) |
|
EXPANSION
SLOTS |
7 |
|
5.25"
DRIVE BAYS |
N/A |
|
2.5"
/ 3.5" DRIVE BAYS (COMBO) |
2 |
|
2.5"
DRIVE BAYS |
2 |
|
I/O
PANEL |
2X
USB 3.2 GEN 1 (FORMERLY USB 3.0), 1X USB 3.2 GEN 2 TYPE-C, 1X SINGLE AUDIO
JACK, 1X RESET/ARGB BUTTON |
|
ARGB
CONTROLLER |
ARGB
HUB |
|
PRE-INSTALLED
FANS - FRONT |
2X
200MM ARGB FAN |
|
PRE-INSTALLED
FANS - REAR |
1X
120MM SICKLEFLOW PWM ARGB |
|
PRE-INSTALLED
FANS - TOP ON HDD CAGE |
1X
120MM SICKLEFLOW PWM (GPU FAN) |
|
FAN
SUPPORT - TOP |
3X
120MM, 2X 140MM, 2X 200MM |
|
FAN
SUPPORT - FRONT |
3X
120MM, 2X 140MM, 2X 200MM, *200MM MOUNTING HOLE SPACING 154 X 154 W/ UP TO
30MM THICKNESS |
|
FAN
SUPPORT - REAR |
1X
120MM |
|
FAN
SUPPORT - TOP ON HDD CAGE |
1X
120MM |
|
RADIATOR
SUPPORT - TOP |
120MM,
140MM, 240MM, 280MM, 360MM |
|
RADIATOR
SUPPORT - FRONT |
120MM,
140MM, 200MM, 240MM, 280MM, 360MM |
|
RADIATOR
SUPPORT - REAR |
120MM |
|
CLEARANCE
- CPU COOLER |
167MM/6.5" |
|
CLEARANCE
- PSU |
180MM/7.1" |
|
CLEARANCE
- GFX |
410MM/16.1" |
|
CABLE
ROUTING - BEHIND MOTHERBOARD TRAY |
30MM |
|
DUST
FILTERS |
TOP,
BOTTOM |
|
POWER
SUPPLY SUPPORT |
BOTTOM
MOUNT, ATX |
|
WARRANTY |
2
YEARS |
|
SERIES |
HAF
SERIES |
|
SIZE |
MID
TOWER |
