All stock codes associated to this product
RC-344-SKR500-N2, RC344SKR500N2

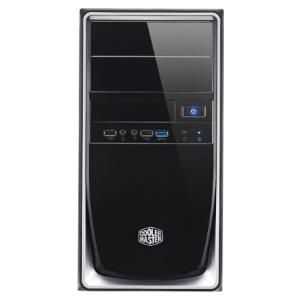

Elite 344 - USB 3.0 - Silver
RC-344-SKR500-N2
The Cooler Master Elite 344 - USB 3 is a compact yet powerful mini tower with a stylish mirror finish front panel. It is available in 3 themes: purple, blue, or silver to match your desk. It supports all mini-ITX and micro-ATX mainboards as well as even the longest graphics cards, such as the AMD HD 7990 and NVIDIA GTX 690. It features side panel lock anchor, as well as cooling vents for both the CPU and graphics card, and thanks to a USB 3.0 port on the front panel smart phones and tablets can be accessed and charged at full speed.

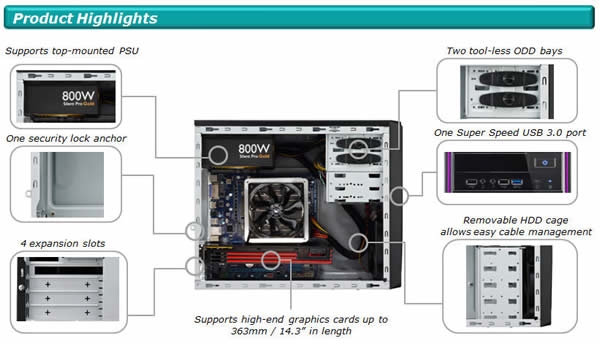

Features
- Mirror finish front panel with 3 themes: blue, silver, or purple
- Supports one USB 3.0 super speed port for 10x faster file transfer and smart phone / tablet charging
- Supports up to 3 fans, including one pre-installed silent 120mm fan in the front
- Removable HDD cage allows easy cable management
- Supports long high-end graphics cards up to 363mm/14.3" in length, including AMD HD 7990 and NVIDIA GTX 690
Specifications
| Available Color |
Black &Purple, Black &Silver, Black &Blue |
| Materials |
Plastic, steel |
| Dimension (W / H / D) |
183 x 356.8 x 436mm / 7.2 x 14.0 x 17.1 inch |
| Net Weight |
4.0 kg / 8.8 lbs |
| M/B Type |
Mini-ITX, Micro-ATX |
| 5.25" Drive Bays |
2 (exposed) |
| 3.5" Drive Bays |
1(exposed), 5(hidden) |
| I/O Panel |
USB 3.0 x 1 (int.), USB 2.0 x 2, Mic x 1, Audio x 1 |
| Expansion Slots |
4 |

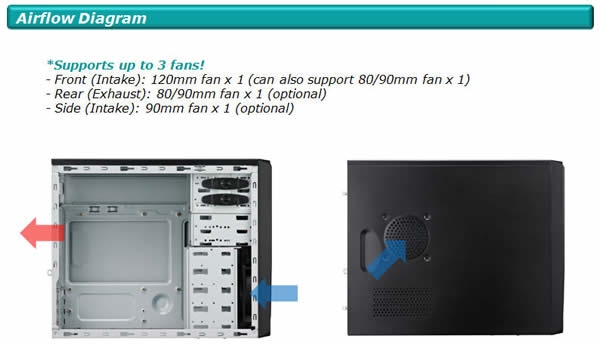

| Cooling System |
Front: 120/90/80mm fan x 1 (120mm installed)
Rear: 90/80mm fan x 1 (optional)
Side: 90mm fan x 1 (optional) |
| Power Supply Type |
Standard ATX PS2, top mounted |
| Maximum Compatibility |
VGA card length:
250mm / 9.8 inch (with the 2nd HDD cage)
363mm / 14.3 inch (without the 2nd HDD cage)
CPU Cooler height: 148mm / 5.8 inch |
