In-win 309GE Mid-Tower Gaming Edition Case - Black
Overview
Lighten Up!
The front panel of 309 Gaming Edition is equipped with 144 stunning ARGB
LEDs. That can achieve an excellent visual experience for the built-in games and
the lighting modes.
A TRUE Gaming Chassis!
We reinterpreted three classic games on the 309 Gaming Edition and it
transforms the front panel into a gaming platform. Now you can immerse yourself
in the gaming world anytime!
309 RACING
Being a famous racer has its challenges! You need to dodge the oncoming cars
and maneuver around the oil stained roads, while trying to get to the finish
line in time. Good luck!
Exclusive Gamepad
The gamepad is specially designed for the 309s integrated games. With its
user-friendly buttons and classic design, now you can use this exclusive gamepad
to gain victory!
Lighting the Way for PC Hardware
The 309 Gaming Edition will be equipped with four InWin Saturn ASN120 fans,
which feature unique transparent frames and a patented modular
design.
Create & Animate!
The upgraded GLOW X software provides the color calibration function and a
new creation mode, which offers up to 40 frames, giving the user the opportunity
to design whatever they want on the front panel display and can even create an
animation! * The GLOW X software is the exclusive software of the 309 Gaming
Edition. All previous models cannot run this version.
Interactive Lifestyle!
Coming with a built-in sound receiver, the 309 Gaming Edition provides
interactive lighting. It hosts a virtual chicken/giraffe that reacts to noise.
Just dont be too loud or it will go crazy!

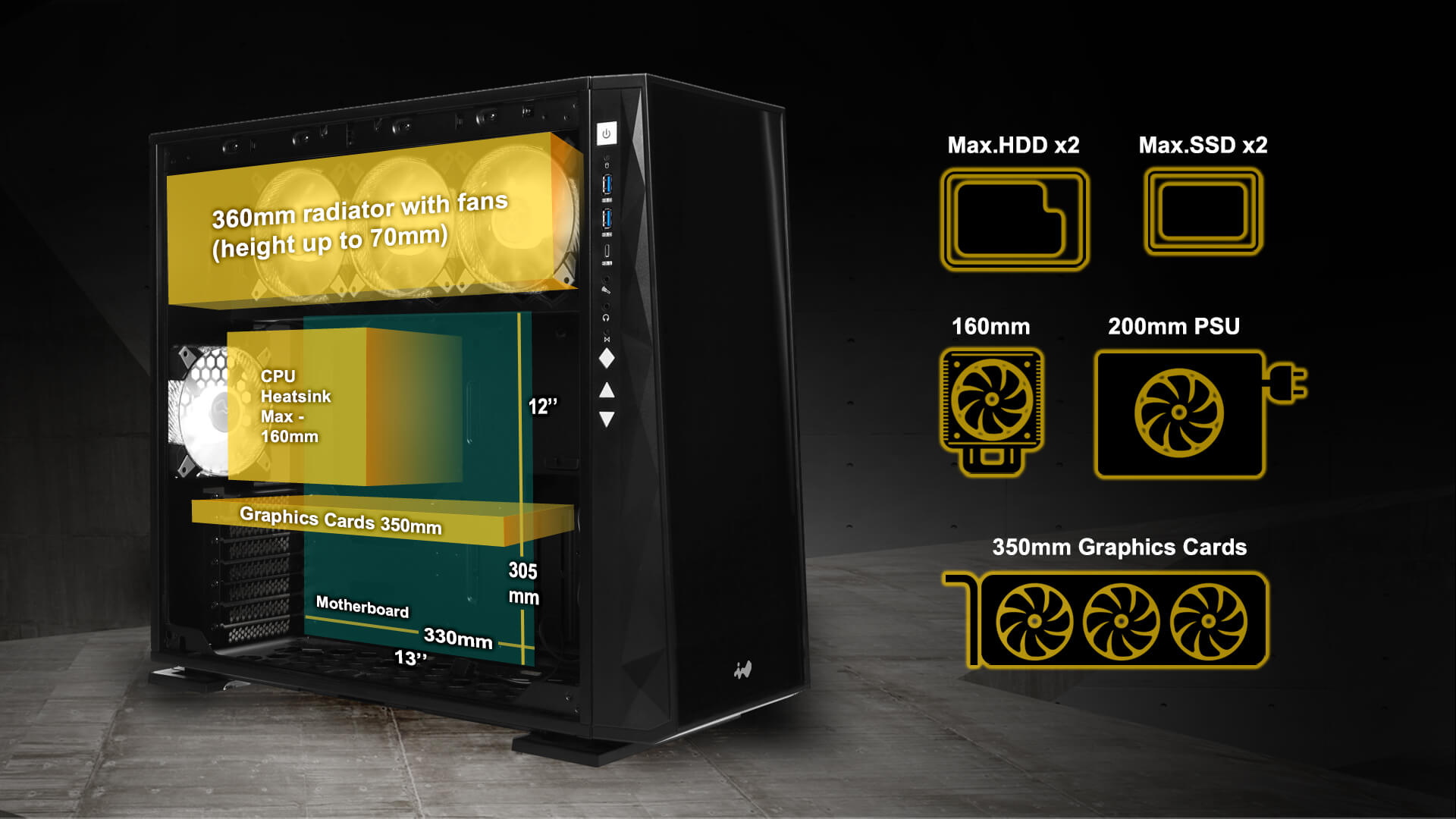

Versatile Liquid Cooling Support
There are three locations the chassis can accommodate liquid radiators; top,
bottom (slim) and rear. A total of seven 120mm case fans can be mounted.
Specifications
|
Model |
309
Gaming Edition |
|
Model
Number |
IW-CS-309GE-BLK |
|
Colors |
Black |
|
Case
Type |
Mid
Tower |
|
Materials |
SECC,
Tempered Glass, ABS |
|
M/B
Compatibility |
12"
x 13" E-ATX, ATX, Micro-ATX, Mini-ITX |
|
Expansion
Slots |
7
x PCI-E |
|
Maximum
Compatibility |
VGA
Card Length: 350 mm |
|
CPU
Heatsink Height: 160 mm |
|
I/O
Ports |
1
x USB 3.1 Gen 2 Type-C |
|
2
x USB 3.0 |
|
HD
Audio |
|
LED
& Fan Mode Button |
|
LED
& Fan Control Buttons |
|
Internal
Drive Bays |
2
x 3.5" / 2.5" |
|
2
x 2.5" |
|
Thermal
Solution Compatibility |
Air
Cooling Fans: |
|
Top:
3 x 120 mm |
|
Rear:
1 x 120 mm |
|
Bottom:
3 x 120 mm |
|
(4
InWin Saturn ASN120 Fans Included) |
|
Water
Cooling Radiator: |
|
Top:
1 x 360 mm |
|
Rear:
1 x 120 mm |
|
Bottom:
1 x 360 mm (Slim) |
|
*Number
of fans pre-installed may vary based on different
regions. |
|
Power
Supply Compatibility |
PSII:
ATX12V |
|
-
Length up to 200 mm |
|
Product
Dimensions |
553
x 238 x 500 mm |
|
(L
x W x H) |
21.8
x 9.4 x 19.7" |
|
Package
Dimensions |
706
x 618 x 335 mm |
|
(L
x W x H) |
27.8
x 24.4 x 13.2" |
|
Net
Weight |
13.7
kg / 30.1 lbs |
|
Gross
Weight |
16.6
kg / 36.6 lbs |
