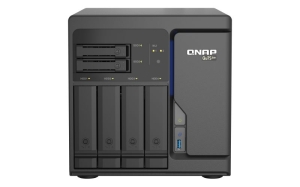

QNAP TS-h686 Intel Xeon D desktop QuTS hero NAS with four 2.5GbE
ports
Overview
Delivering enterprise performance at SMB prices, the TS-h686 features an
Intel Xeon D processor and DDR4 ECC (Error Correcting Code) memory (expandable
to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating
system, the TS-h686 ensures data integrity and supports block-level inline data
deduplication and compression, near-limitless snapshots, and real-time SnapSync.
The TS-h686 helps your business achieve reliable service-level agreement
performance in various use cases, including mission-critical file servers,
virtualization servers, collaborative video editing, or efficient data backup
and recovery applications.
2.5GbE connectivity
Four 2.5GbE ports accelerate file sharing across teams and devices, virtual
machine applications or multimedia transmission.
ECC memory
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating
high reliability for crucial applications.
Dual M.2 PCIe slots
Two M.2 NVMe Gen 3 x4 SSD slots (each slot providing up to 3.2 GB/s
bandwidth) enable SSD caching to boost random read/write
performance.
Flexible PCIe expansion
Two PCIe slots allow for 5GbE/10GbE/25GbE/40GbE adapters, QM2 cards, or
entry-level graphics cards to increase application performance.
Virtualization applications
Scalable storage supporting virtual machines, containerized apps, centralized
storage, backup, sharing, and disaster recovery.
ZFS file system
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to
empower your business.
Specifications
|
CPU |
Intel
Xeon D-1602 2-core/4-thread processor, up to 3.2
GHz |
|
CPU
Architecture |
64-bit
x86 |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
(AES-NI) |
|
Hardware-accelerated
Transcoding |
Optional
via a PCIe adapter |
|
System
Memory |
8
GB UDIMM DDR4 ECC (2 x 4 GB) |
|
Maximum
Memory |
128
GB (4 x 32 GB) |
|
Memory
Slot |
4
x UDIMM DDR4 |
|
For
dual-DIMM configurations, you must use a pair of identical DDR4
modules. |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
4
x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
|
|
The
system is shipped without HDD. |
|
For
the HDD compatibility list, please
visit https://www.qnap.com/compatibility/ |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
2.5-inch
bays: |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
2
x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
|
SSD
Cache Acceleration Support |
Yes |
|
GPU
pass-through |
Yes |
|
SR-IOV |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
4
(also support 10M) |
|
5
Gigabit Ethernet Port (5G/2.5G/1G/100M) |
Optional
via an adapter |
|
25
Gigabit Ethernet Port |
Optional
via an adapter |
|
Wake
on LAN (WOL) |
Only
the 2.5GbE port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
2 |
|
Slot
1: PCIe Gen3 x8 |
|
Slot
2: PCIe Gen3 x8 |
|
USB
3.2 Gen 1 port |
3 |
|
Form
Factor |
Tower |
|
LED
Indicators |
System
status, LAN, USB, Disk 1~6, M.2 SSD 1~2 |
|
Buttons |
Power,
Reset, USB Auto Copy |
|
Dimensions
(HxWxD) |
231.9
224.9 319.8 mm |
|
Weight
(Net) |
7.27
kg |
|
Weight
(Gross) |
8.72
kg |
|
Operating
temperature |
0
- 40C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
250W
PSU, 100~240V |
|
Power
Consumption: Operating Mode, Typical |
61.115
W |
|
Tested
with drives fully populated. |
|
Fan |
System
fan: 1 x 97mm, 12VDC |
|
CPU
fan: 1 x 90mm, 12VDC |
|
System
Warning |
Buzzer |
|
Kensington
Security Slot |
Yes |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
10000 |
