All stock codes associated to this product
TS873AEU4G, TS-873AEU-4G, TS873AeU4G, TS-873AeU-4G, BAQNTS873AEU4G, BAQN-TS-873AEU-4G, QN17372, 4711103081075, 29Q-873AEU-4G

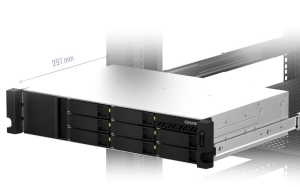

QNAP TS-873AeU Short Depth Rackmount dual-2.5GbE NAS. Powered by a
Quad-core AMD Ryzen processor, supporting 10/25GbE or M.2 SSD caching PCIe
expandability for virtual applications (Supports QTS or QuTS hero operating
systems)
Overview
The compact 2U rackmount TS-873AeU combines an AMD Ryzen V1000 series V1500B
quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one
chassis. Compared to its previous generation, the TS-873AeU is enhanced with two
M.2 PCIe Gen3 x 1 ports for NVMe SSD caching or Edge TPU empowered AI image
recognition. Cutting-edge hardware integrated with comprehensive software
solutions makes the TS-873AeU the preeminent choice to tackle resource-demanding
applications and tasks, such as virtual machines or multi-user intensive access.
The space-efficient short depth design makes it easy to install in small media
cabinets or places with a lot of cabling.
Dual-2.5GbE connectivity
Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by
using port trunking.
PCIe expandability
Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards,
including 10/25GbE ports, QM2, or Fibre Channel.
Optimized SSD performance
Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier and
SSD caching technology.
Hybrid cloud storage
Supports block-based and file-based cloud storage gateways with local caching
for low-latency access to cloud data.
Virtual machine applications
Host multiple virtual machines and containers to run a wide range of
applications.
2U Short depth design
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly
suited for installation in a compact rack, or places with a lot of cabling.
Specifications
|
CPU |
AMD
Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz
processor |
|
CPU
Architecture |
64-bit
x86 |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes (AES-NI) |
|
Hardware-accelerated
Transcoding |
Optional
via a PCIe graphics card |
|
System
Memory |
4
GB SODIMM DDR4 (1 x 4 GB) |
|
Maximum
Memory |
64
GB (2 x 32 GB) |
|
Memory
Slot |
2
x SODIMM DDR4 |
|
Support
ECC memory |
|
For
dual-DIMM configuration, you must use a pair of identical DDR4
modules. |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
8
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
The
system is shipped without HDD. |
|
For
the HDD compatibility list, please
visit https://www.qnap.com/compatibility/ |
|
Drive
Compatibility |
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
2
x M2 2280 (PCIe Gen3 x 1) |
|
SSD
Cache Acceleration Support |
Yes |
|
GPU
pass-through |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(also support 10M) |
|
5
Gigabit Ethernet Port (5G/2.5G/1G/100M) |
Optional
via a network adapter |
|
10
Gigabit Ethernet Port |
Optional
via a network adapter |
|
Wake
on LAN (WOL) |
Only
the 2.5GbE port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1
x PCIe Gen3 x8 |
|
USB
3.2 Gen 2 (10Gbps) Port |
4
(2 x Type A, 2 x Type C) |
|
HDMI
Output |
Optional
via a PCIe graphics card |
|
Form
Factor |
2U
Rackmount |
|
LED
Indicators |
HDD
1-8, Status, LAN, USB, Power |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
89
482 297.4 mm |
|
Weight
(Net) |
7.61
kg |
|
Weight
(Gross) |
10.2
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
250W
PSU, 100 - 240V |
|
Fan |
3
x 60mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
2000 |
