All stock codes associated to this product
TD300WGNNS00, TD300-WGNN-S00, 5458825
Coolermaster TD300 Mesh Case - White
Overview
TD300 Mesh brings together modern presentation and performance with its three
dimensional artistic mesh front panel. The polygonal diamond-cut facade
emphasizes the illumination of two included SickleFlow PWM ARGB fans, cast
various glowing effects, shifting based on the viewing angle. Cooler Masters
FineMesh technology simultaneously provides high airflow, dust filtration, and
strengthened structure for maximum performance and effortless cooling. With the
exclusive removable top panel, adaptable drive cage, and ample cooling support,
TD300mesh provides a canvas of unlimited possibilities.
Features
- Polygonal Mesh Crafted with Cooler Masters FineMesh technology, the
polygonal mesh features a three-dimensional contour, capable of simultaneously
providing high airflow and excellent dust filtration.
- SickleFlow PWM ARGB Fans Included Pre-installed with two highly acclaimed
120mm ARGB Sickleflow fans, managed by the included Hub to easily customize a
comprehensive ARGB lighting system and minimize ARGB port usage on the
motherboard.
- ARGB/PWM Hub The included HUB features 5 ARGB and 4 PWM ports and
facilitates cable management in the system, allowing you to conveniently
control fans with a single connector for power and PWM signal and another for
ARGB signal.

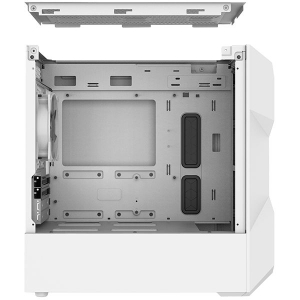

- Removable Top Panel The top panel is entirely removable for improved
access to the components during assembly. Ease of use also facilitates the
mounting of cooling solutions such as fans and radiators.
- Tempered Glass Side Panel Hardware, custom-loop cooling, and the pure
pride of the builder is shown in panoramic view through an edge-to-edge
tempered glass side panel.
- Adaptable Drive Cage The drive cage can be shifted towards the front to
accommodate for PSU space, backwards to provide additional radiator space, or
even completely removed.
- Versatile Cooling Options Support for up to six fans and front, top, and
rear radiator support ensure that performance is not
compromised.
- Room For Upgrades Support for up to a 344mm graphics card, a 166mm CPU
cooler, and up to a 325mm PSU in length provides room for upgrades to stay
ahead of the game.
Specifications
|
Product
Name |
TD300
Mesh White |
|
Product
Number |
TD300-WGNN-S00 |
|
Exterior
Color |
White |
|
Materials |
Exterior |
Steel,
Mesh, Plastic |
|
Left
Side Panel |
Tempered
Glass |
|
Dimensions
(L x W x H) |
Body
Size |
366.5
x 210 x 410mm |
|
incl.
Protrusions |
|
433
x 210 x 420.5mm |
|
Motherboard
Support |
Mini-ITX,
Micro-ATX |
|
Expansion
Slots |
4 |
|
Drive
Bays |
5.25
ODD |
N/A |
|
3.5
/ 2.5 Combo |
2 |
|
2.5
SSD |
2 |
|
I/O
Panel |
USB
Ports |
2x
USB 3.2 Gen 1 (USB 3.0) |
|
Audio
In / Out |
1x
3.5mm Audio Jack |
|
1x
3.5mm Mic Jack |
|
Other |
1x
ARGB/PWM Hub |
|
Pre-installed
Fan(s) |
Front |
2x
120mm SickleFlow PWM ARGB Fans |
|
Top |
N/A |
|
Rear |
N/A |
|
Bottom |
N/A |
|
Fan
Support |
Top |
2x
120mm/140mm |
|
Front |
3x
120mm* / 2x 140mm |
|
(*can
only mount behind the front panel) |
|
Rear |
1x
120mm |
|
Radiator
Support |
Top |
120
/ 140 / 240 / 280mm |
|
Front |
120
/ 140 / 240 / 280mm |
|
Rear |
120mm |
|
Clearances |
CPU
Cooler |
166mm |
|
Power
Supply |
325mm
(w/o front radiator and drive cage) |
|
140mm
(drive cage in backmost position) |
|
Graphics
Card |
344mm |
|
Cable
Routing |
Behind
MB Tray |
18~22mm |
|
Dust
Filters |
Front,
Top, Bottom |
|
Power
Supply Support |
Bottom
mount, ATX |
|
Warranty |
2
Years |
