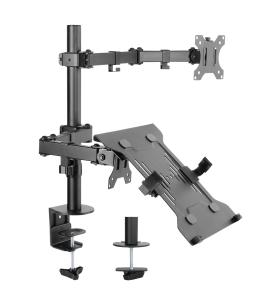

Brateck Economical Double Joint Articulating Steel Monitor Arm
with Laptop Holder Fit Most 13"-32" Monitors, Up to 8kg/Screen
Overview
The LDT12- C1M2KN is upgraded monitor arm, which double joint is able to be
tightened, so you can adjust exactly how stationary you want everything to be.
Constructed of high grade steel, this rugged mount built to resist scratches and
supports screens up to 8kg/17.6 lbs. and 32 in size. We made a detachable VESA
panel, just simply screw the monitor on the panel and slide back to the mount.
Full motion structure enhances your viewing option with a large monitor at the
same time with your laptop/notebook. Besides, cable clip is included for keeping
cables organized and protected. Please refer to product diagram for further
details.
- Detachable VESA Plate Design: enables easy installation
- Cable Management: elegantly hides any cables that are attached to
displays
- 360 Rotary VESA Plate: for more viewing experience
- Two Mounting Options: both desk clamp and grommet are included
Specifications
Dimensions |
1006x356x548mm
(39.6"x14"x21.6") |
Fit
Screen Size |
13"-32" |
Screen
Quantity |
1 |
Weight
Capacity (per screen) |
8kg
(17.6lbs) |
Laptop
Weight Capacity |
4kg
(8.8lbs) |
VESA
Compatible |
75x75,100x100 |
Tilt
Range |
+45~-45 |
Screen
Rotation |
+180~-180 |
Swivel
Range |
+90~-90 |
Arm
Full Extension |
399mm
(15.7") |
Pole
Height |
443mm
(17.4") |
Installation |
Grommet,
Clamp |
Suggested
Desktop Thickness |
Clamp10~88mm
Grommet10~75mm (Clamp0.39"~3.5"
Grommet0.39"~3") |
Quick
Release VESA Plate |
Yes |
Cable
Management |
Yes |
