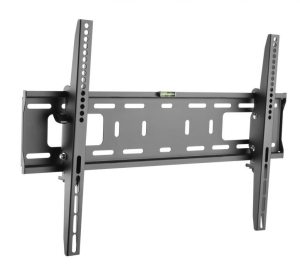

Atdec AD-WT-5060
Overview
Mount for tilted displays with space for devices at rear. Brackets for 24
stud spacing. Displays to 110lbs (50kg), VESA to 600x400.
AD-WT-50?>
AD-WT-5060 suits applications that require a tilted display, space behind the
display for device/s, and fixture to stud walls with 24 stud
spacing.
This wall mount is designed for displays to 50kg (110lbs) and universal VESA
patterns to 600x400.
The AD-WT-5060 mounts displays tilted -10 to +5 to the wall, with 56mm (2.2)
space at rear in which devices may be concealed. Its versatility and
construction makes AD-WF-5060 suitable for commercial, domestic, and most light
industrial environments.
AD-WT-5060 suits most types of walls (with appropriate hardware*) and
demonstrates Adtecs easy installation ethos, with an integrated spirit level and
slotted mounting holes. The brackets allow minor lateral adjustment to position
the display precisely as desired.
Consider AD-WT-5040 for narrower stud spacing.
* wall mount hardware not included
Choose me for:
- Stud walls with 24 spacing
- Tilted display capability
- Space behind display
- Robust functionality &long service life
- Easy, safe &tidy installation
- Superseding Atdec's TH-3060-UT
Miscellaneous
| Application/Usage | Wall |
| Commercial |
| Stud |
| Industrial |
| Domestic |
Physical Characteristics
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 200 |
| 600 x 400 |
| 400 x 300 |
| 400 x 400 |
| 400 x 200 |
| 300 x 300 |
| 300 x 200 |
| 200 x 200 |
| 200 x 100 |
| 100 x 100 |
| Product Material | Steel |
General Information
| Product Type | Wall Mount |
| Manufacturer Part Number | AD-WT-5060 |
| Manufacturer Website Address | https://www.atdec.com.au |
| Manufacturer | Atdec Pty Ltd |
| Product Name | Tilt Wall Mount 5060 |
| Brand Name | Atdec |
Product Information
| Device Supported | Display Screen |
| Features | Robust |
| 5° Tilt |
| Lateral Adjustment |
| Tilt |
| Horizontal Adjustment |
| Spirit Level |
| -10° Tilt |
| Adjustable Angle |
| Maximum Load Capacity | 50 kg |
| Mount Pattern | Universal |
