249100 | Koamtac KDC270Li 1D Laser Bluetooth Barcode Scanner & Data

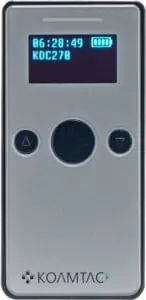

Kaomtac KDC270Li 1D Laser Bluetooth Barcode Scanner & Data Collector

Overview

1D Laser, CCD, or 2D Imager Bluetooth Barcode Data Collector

The KDC270 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. A built-in display and keypad eliminate blind erroneous data collection and enable interactive processes.

A rechargeable battery that is easily replaced can charge from any USB port and allows more than 17,000 barcode scans with a 1-second interval. With 8MB of onboard memory that stores over 400,000 UPC product barcodes or 60,000 product database records, memory shortages are no longer a concern.

The KDC270 comes with KTSync software and SDK for Android, iOS, and Windows devices. KTSync includes a keyboard wedging feature, application generation, DB lookup, inventory management, and KDC configuration features. SDK provides technical support from our top engineers and development team.

Specifications

Physical Characteristics

• Size: 1.57 x 3.23 x 0.71 (40 mm x 82 mm x 18 mm)
• Weight: 2.03 oz (57.5 g)
• Electrical Characteristics
• Battery: Lithium-Ion (3.7V DC, 650mAh)
• Charging: USB connector, Charging Cradle

Interfaces

• Bluetooth V2.1+EDR (Class2): HID, SPP/MFi
• Micro USB: Flash Memory (Windows), USB HID, USB Serial (Android with OTG cable / Windows)

User Environment

• Ingress Protection Rating: IP65
• Drop Spec: 5 (1.5 m)
• Operating: 14F to 122F (-10C to 50C)
• Storage: -4F to 140F (-20C to 60C)
• Humidity: 5% to 95% (non-condensing)
