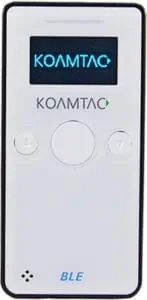

Koamtac KDC280C-BLE 2D Imager Bluetooth Barcode Scanner & Data
Collector
Overview
1D Laser, 1D CCD , or 2D Imager Bluetooth Barcode Data
Collector
The KDC280 enables diverse mobile Auto-Identification applications for
collecting and storing barcode data. The newest model to the KDC family features
Bluetooth Low Energy (BLE) to enable faster and simpler connection methods as
well as use with smartwatches, smartglasses, and other wearable smart
devices.
A built-in display and keypad eliminate blind erroneous data collection and
enable interactive processes. A rechargeable battery that is easily replaced can
recharge from any USB port and allows more than 17,000 barcode scans with a
1-second interval. With 8MB of onboard memory that stores over 400,000 UPC
product barcodes or 60,000 product database records, memory shortages are no
longer a concern.
The KDC280 comes with KTSync software and SDK for Android, iOS, and Windows
devices. KTSync includes a keyboard wedging feature, application generation, DB
lookup, inventory management, and KDC configuration features. SDK provides
technical support from our top engineers and development team.
Specifications
Physical Characteristics
- Size: 1.57 x 3.23 x 0.71 (40 mm x 82 mm x 18 mm)
- Weight: 2.03 oz (57.5 g)
- Electrical Characteristics
- Battery: Lithium-Ion (3.7V DC, 650mAh)
- Charging: USB connector, Charging Cradle
Interfaces
- Bluetooth Low Energy 5.0: HID (Android/iOS/Windows), SPP
- Micro USB: Flash Memory (Windows), USB HID, USB Serial (Android with OTG
cable / Windows)
- Type-C USB: Flash memory (Windows), USB HID, USB Serial (Android with OTG
cable / Windows)
User Environment
- Ingress Protection Rating: IP65
- Drop Spec: 5 (1.5 m)
- Operating: 14F to 122F (-10C to 50C)
- Storage: -4F to 140F (-20C to 60C)
- Humidity: 5% to 95% (non-condensing)
