All stock codes associated to this product
DSATPMOLP4, 4936424
Startech Dual SATA to LP4 Power Doubler Cable Adapter - 2 SATA
to 4 Pin LP4 Internal PC Peripheral Power Supply Connector - SATA Y
Cable - Male/Female - 18 AWG Wire - 9 Amps/108W
Overview
- DUAL SATA TO LP4 POWER CABLE: This power supply doubler adapter cable
overcomes SATA Power supply (ATX) output limits by combining 2 SATA power
connections into one 4-Pin LP4 connector, providing extra power to drive
backplanes & storage peripherals
- DUAL SATA PROVIDES 150W TO LP4 DEVICE: Dual SATA Power inputs provide
additional 5V and 12V power lines, providing extra 4.5A current per line,
giving a total power output of 108W (9A at 12V) and 45W (9A at 5V)
- EXTRA POWER FOR 4-Pin LP4 BACKPLANES: The double SATA power supply to LP4
adapter cable provides extra power to mobile rack multi-drive (SSD/HDD)
Backplanes that utilize LP4 Power such as StarTech.com SATSASBP425
- HIGH QUALITY CONSTRUCTION: 100% copper 18AWG UL1007 wires with PVC
insulation, allowing max current of 4.5A per wire, Insulation tested upto 300V
DC and connectors made from high strength LD-PE that can withstand high
voltage and current ratings
- SPECS: 6 inch | 2x SATA Power male to LP4-Pin female | Insulation: PVC |
Connector: LD-PE | 18 AWG, UL1007 | Lifetime Warranty | Note: Connected LP4
device must not draw more than 153W (9A per line)

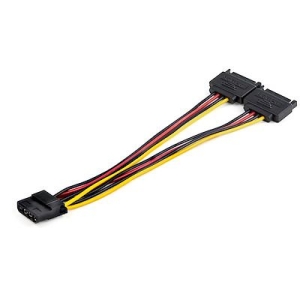

- The SATA power to LP4 power cable adapter features two male SATA power
connectors and one female LP4 power connector.
Robust Power Connectivity
The pc internal power cable eliminates the need to upgrade your power supply
for peripherals that require additional power via the LP4 connector. This
enables you to extend your power connections and allows you to position your
internal PC devices (i.e. hard drive, DVD-ROM drive, add-in card, etc.) inside
the system case. In addition, the dual SATA power cable offers 6-inches in cable
length from each of the SATA connector to the 4 pin LP4 peripheral power
connector.
Constructed of only top-quality materials and designed for optimum
performance and reliability, this power supply SATA cable is the perfect
connectivity solution for demanding devices.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all
our products to ensure we are meeting or exceeding industry standards and
providing high-quality products to IT Professionals. Our local StarTech.com
Technical Advisors have broad product expertise and work directly with our
StarTech.com Engineers to provide support for our customers both pre and
post-sales.
The DSATPMOLP4 is backed by a StarTech.com lifetime warranty and free
lifetime technical support.
