All stock codes associated to this product
2P6GPCIESATACARD, 2P6G-PCIE-SATA-CARD, 5442636

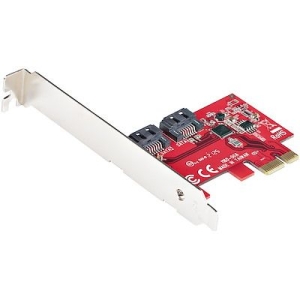

StarTech.com SATA Controller - Serial ATA/600 - PCI Express 2.0 x1 - Plug-in Card - 2 Total SAS Port(s) - 2 SAS Port(s) Internal - PC, Mac, Linux - Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022, ... Supported Operating System
This 2-port SATA III (6Gbps) controller enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x1 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
ASM1061 to Deliver 2-Port SATA 6Gbps Performance
Featuring the ASM1061 controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 4Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).
Wide Compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.6.8 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).
To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.
Hassle-Free Installation
The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
2P6G-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support.
Interfaces/Ports
| Total Number of SAS Ports | 2 |
| Number of SAS Ports (Internal) | 2 |
Technical Information
| Host Interface | PCI Express 2.0 x1 |
| Device Supported | Server |
| Desktop PC |
| Controller Type | Serial ATA/600 |
| Operating System Supported | Windows 7 |
| Windows 8 |
| Windows 8.1 |
| Windows Server 2012 R2 |
| Windows XP |
| Windows Vista |
| Windows Server 2016 |
| Windows Server 2019 |
| Windows Server 2022 |
| Linux 2.6.32 |
| Mac OS X 10.10 Yosemite |
| Mac OS X 10.11 El Capitan |
| Mac OS X 10.12 Sierra |
| Mac OS X 10.13 High Sierra |
| Mac OS X 10.14 Mojave |
| Mac OS X 10.15 Catalina |
| Mac OS X 11.0 Big Sur |
| Mac OS X 12.0 Monterey |
| Mac OS X 13.0 Ventura |
| macOS 10.6.8+ |
| Windows 10 |
| Windows 11 |
| RAID Supported | No |
Miscellaneous
| Platform Supported | PC |
| Linux |
| Mac |
Physical Characteristics
| Weight (Approximate) | 34 g |
| Form Factor | Plug-in Card |
| Length | 68.6 mm |
| Height | 121.9 mm |
| Width | 17.8 mm |
General Information
| Product Type | SATA Controller |
| Manufacturer Part Number | 2P6G-PCIE-SATA-CARD |
| Manufacturer Website Address | https://www.startech.com/au |
| Manufacturer | StarTech.com |
| Product Name | PCIe SATA Card |
| Brand Name | StarTech.com |
