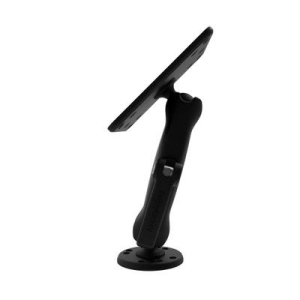

Joy Factory VESA 75/100 HD AMPs Mount (26mm)
Overview
The VESA 75/100 AMPs (26mm) HD-Mount is a versatile solution to positioning a
device in any vehicle that requires vibration dampening. The base features a
drill down universal AMPs base that easily attaches to flat surfaces. Devices
attach to the mount via VESA 75x75mm, 100x50mm and 100x100mm configurations it
will accommodate most IPCs and a variety of other devices.
The body of the mount features cable management and a robust,
corrosion-resistant mount arm that can be adjusted to reach the optimum viewing
and operating angle. It features two rubber coated ball joints which provide
vibration and shock reduction. To keep the device in place the robust arm and
rubber coated ball joints provide an increased holding strength. The body of the
mount has a slim profile to allow it to fit into tight spaces and features a
lever which modifies the force put onto its joints. For public environments that
require theft prevention, an optional security feature is
available.
- Compatible with devices that utilize VESA 75x75mm, 100x50mm and 100x100mm
patterns
- Drill down base has an AMPs 30x38mm pattern for universal
compatibility
- Certified vibration and shock resistant MIL-STD-810G 514.7
- Built with two 26mm spherical rubber coated ball joints to provide maximum
holding strength
- Made with corrosion-resistant material making it ideal for mixed element
environments
- Features cable management, 360 degree rotation, shock and vibration
resistance, and near infinite adjustability
- Mount features two 26mm ball joints for increased hold capacity
- Optional locking lever for usage in public spaces
Specifications
- Material: Aluminum Alloy
- Weight: 1.41 lbs
- Arm Length: 5.25" x 1
- Ball Joint Size: 26mm (1")
- Total Length: 7.12"
- Mount Load Capacity: Up to 10 lbs
- Tablet Connection: Universal
- Base Specifications: Affixes via AMPs 30x38mm pattern
