All stock codes associated to this product
C6UTSL305PU, C6UTSL305-PU, 9352399001856

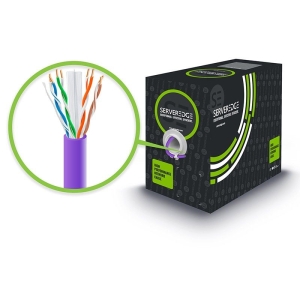

Serveredge 305M 23AWG PURPLE PVC SOLID CAT6 NETWORK CABLE - U-UTP / 4
PAIR
Overview
The CAT6 solid cable is used mostly in bandwidth-intensive voice, data, or
video distribution applications.
Serveredge CAT6 305m Network Cable - UTP, Solid, PVC, 23AWG can be used to
connect a variety of devices in a high-speed network. The cable is twisted in
pairs, separated by an integrated pair divider, and protected by a PVC jacket.
It is packaged in an easy to use pull box carton. The cable meets and exceeds
all CAT6 TIA/EIA standards, and drastically reduces both impedance and
structural return loss (SRL). The cable is made from the highest quality copper
to maximize performance and minimize Near-End Crosstalk (NEXT).
FEATURE
- Supports all applications designed to operate over Category 6 or lower
rated systems
- Sequential measurement markings on jacket
- Packaged in an easy to use pull box carton
- Ideal for running inside walls
- Comes in a variery of colours
SPECIFICATION
- Sheath material: PVC
- Wall thickness of sheath: 0.50mm
- Rip cord under sheath: Yes
- Insulation material: High-density polyethylene
- Insulation thickness: 0.23mm
- Conductor material: Soft annealing bare copper wire
- Cable construction: 4 twisted pairs stranded together
- Cable colours: White/Blue, White/Orange, White/Green,
White/Brown
- Twisted pair lay length: 38mm
- Standards Compliance
- ISO/IEC 11801 Ed. 2.2 (Class E)
- IEC 61156-5:2009 (Category 6)
- ANSI/TIA-568-C.2 (Category 6)
- Supports up to 1000BASE-T application
