QNAP Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6
GHz, 8 GB on board (non-expandable)

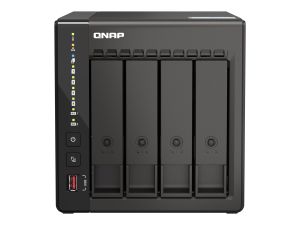

Overview
The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD
caching to deliver high performance for applications such as surveillance
systems, virtual machines, file servers or backup servers. Dual HDMI outputs
also provide direct multimedia playback and robust surveillance monitoring. QNAP
will provide long-term availability and support for the TS-453E, providing a
great choice for businesses requiring matching NAS models deployed in multiple
locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port
trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold
separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period,
up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution
video playback.
Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).
Specifications
|
CPU |
Intel
Celeron J6412 4-core/4-thread processor, burst up to 2.6
GHz |
|
CPU
Architecture |
64-bit
x86 |
|
Graphic
Processors |
Intel
UHD Graphics |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
(AES-NI) |
|
Hardware-accelerated
Transcoding |
Yes |
|
System
Memory |
8
GB on board (non-expandable) |
|
Maximum
Memory |
8GB |
|
Flash
Memory |
4GB
(Dual boot OS protection) |
|
Drive
Bay |
4
x 3.5-inch SATA 6Gb/s |
|
The
system is shipped without HDD. |
|
For
the HDD compatibility list, please
visit https://www.qnap.com/compatibility/ |
|
Drive
Compatibility |
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
2
x M.2 2280 PCIe Gen 3 x2 |
|
SSD
Cache Acceleration Support |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(2.5G/1G/100M/10M) |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
USB
2.0 port |
2 |
|
USB
3.2 Gen 2 (10Gbps) Port |
2
x Type-A |
|
HDMI
Output |
2
x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz ) |
|
Form
Factor |
Tower |
|
LED
Indicators |
Power/Status,
LAN, USB, HDD1-4 |
|
Buttons |
Power,
Reset, USB Auto Copy |
|
Dimensions
(HxWxD) |
177
x 180 x 235 mm |
|
Weight
(Net) |
3
kg |
|
Weight
(Gross) |
4.3
kg |
|
Operating
Temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
90W
adapter, 100-240V |
|
Power
Consumption: HDD Sleep Mode |
15.78
W |
|
Power
Consumption: Operating Mode, Typical |
33.88
W |
|
Fan |
1
x 120mm, 12VDC |
|
System
Warning |
Buzzer |
|
Kensington
Security Slot |
Yes |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
1500 |
