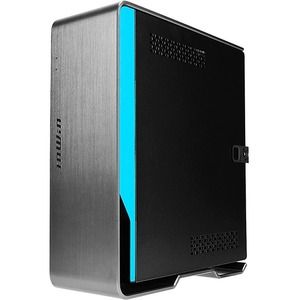

Inwin Chopin Max Mini-ITX Tower Case - Titanium Grey
Overview
Increased cooling space
Optimized CPU cooling space, increased to a maximum of 54 mm, perfectly
supporting Intel & AMD original CPU coolers.
Stencil Design
In order to strengthen the ventilation of the internal casing, mesh panels
are used on the top and sides. The new design increases the side mesh panels to
effectively increase the heat dissipation efficiency.
Equipped with 200W gold certified power
supply
Chopin MAX is equipped with an 80 PLUS gold certified 200W power supply as
standard, with excellent performance of high stability and long
life.
Double the read and write speed
Equipped with USB 3.2 Gen 2 x 2 Type-C transmission interface, double-sided
plugging and ultra-high reading and writing speed, it provides fast charging
speed and excellent data transfer rate.
Make a big difference in a small space
Chopin MAX can accommodate 2 2.5 hard drives, convenient quick release
design, can easily install M.2 hard drives, mini case, everything
inside!
Ultra-lightweight aluminum frame chassis
Chopin MAX is a high-quality, ultra-lightweight 4 mm aluminum frame case. It
is perfectly integrated and bent. With a hair-drawing design, it has
uncompromising quality and perfect functionality in a small size.
Customized I/O Panel
The chassis provides 4-color I/O panels, players can freely mix and match to
create different styles!
Specifications
product
name |
Chopin
MAX |
Product
number |
IW-CS-CHOPINMAXGRE-PS200W |
color |
Titanium
Grey |
Chassis
form |
Mini
case |
material |
SECC
galvanized steel sheet, aluminium alloy |
motherboard
compatible |
Mini-ITX |
out/in
port |
1
x USB 3.2 Gen 2x2 Type-C |
2
x USB 3.2 Gen 1 |
HD
Audio |
highest
compatibility |
Support
CPU cooler height: 54 mm |
hidden
disk slot |
2
x 2.5" (HDD thickness max. 9.5 mm) |
Power
supply compatible |
Standard
InWin 200W 80 PLUS Gold power supply |
Product
Dimensions (LxWxH) |
217
x 84 x 244 mm |
Packaging
Dimensions (LxWxH) |
270
x 120 x 276 mm |
net
weight |
2.2
Kg |
Gross
weight |
2.5
Kg |
