All stock codes associated to this product
TS-h1090FU-7302P-128G, TSh1090FU7302P128G, QN17238, TSH1090FU7302P128G, TS-H1090FU-7302P-128G
QNAP TS-h1090FU-7302P-128G AMD EPYC 7302P 16-core/32-thread
processor, up to 3.3 GHz, 128 GB RDIMM DDR4 ECC (8 x 16 GB)
Overview

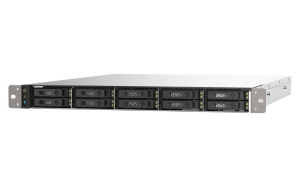

The TS-h1090FU high-density NVMe all-flash storage is designed for providing
extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4
SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with
ultra-low latency. The ZFS-based QuTS hero operating system supports inline data
deduplication and compression for reducing I/O and SSD storage consumption,
which significantly extends SSD lifespan with a higher price-performance ratio
for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive
applications, the TS-h1090FU eliminates productivity bottlenecks in
virtualization, modern data centers, multimedia storage, and mission-critical
backup/restore taskssuitable for Tier 2 storage workloads with an ideal low
cost-per-GB.
High-density all flash storage
Space-efficient with only 58cm depth compared to 80+cm depth in a 1U
rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive
bays.
Optimized SSD performance and lifespan
Inline data deduplication and compression, Pool Over-provisioning, and TRIM
maximize SSD performance and lifespan.
25GbE future-proof connectivity
Accelerates virtualization, intensive file access, media transfer, and large
backup/restoration tasks.
High-speed PCIe Gen 4 slots
Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards
to increase application performance.
Virtualization applications
Supports virtualization storage, virtual machines with SR-IOV support, and
containerized apps.
Flexible storage expansion
Scalable design to grow with your business by connecting QNAPs economical
expansion enclosures.
Specifications
|
CPU |
AMD
EPYC 7302P 16-core/32-thread processor, up to 3.3
GHz |
|
CPU
Architecture |
64-bit
x86 |
|
Encryption
Engine |
Yes (AES-NI) |
|
System
Memory |
128
GB RDIMM DDR4 ECC (8 x 16 GB) |
|
Maximum
Memory |
1
TB+ (12 x 128 GB) |
|
Memory
Slot |
12
x RDIMM DDR4 |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
10
x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps |
|
The
system is shipped without SSD. |
|
For
the SSD compatibility list, please
visit https://www.qnap.com/compatibility/ |
|
Drive
Compatibility |
2.5-inch
U.2 NVMe Gen 4 x4 solid state drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
SSD
Cache Acceleration Support |
Yes |
|
SR-IOV |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(2.5G/1G/100M/10M) |
|
25
Gigabit Ethernet Port |
2
x 25GbE SFP28 SmartNIC port |
|
Wake
on LAN (WOL) |
Only
the 2.5GbE port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
2 |
|
Slot
1: PCIe Gen4 x16 |
|
Slot
2: PCIe Gen4 x16 |
|
For
low profile PCIe cards only. |
|
USB
3.2 Gen 1 port |
3 |
|
Form
Factor |
Rackmount |
|
LED
Indicators |
Disk,
Status, LAN, storage expansion port status |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
44
x 430 x 580 mm |
|
Weight
(Net) |
10.36
kg |
|
Weight
(Gross) |
13.41
kg |
|
Operating
Temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
550W
PSU (x2), AC 100-240 V |
|
Power
Consumption: Operating Mode, Typical |
157.97
W |
|
Tested
with drives fully populated. |
|
Fan |
5
x 60mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
10,000 |
