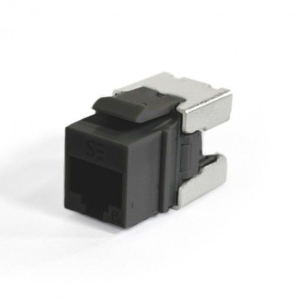

KSUC6AQ-10BK | Serveredge Cat6A, UTP, RJ45 Modular Keystone Jack - QUICK TOOL

These modular Cat6A Jacks are colour coded for both 568A and 568B standards and can be terminated using a standard 110, Krone Tool or Serveredge Quick Tool.

They are designed to accept 22-24 AWG diameter conductors. Which are used with unshielded twisted pair (UTP) network, and across a range of Ethernet, Fast Ethernet with Gigabit Ethernet network and IT applications.

Serveredge Quick Tool, product code QTKS, is now available saving time and money when terminating multiple jacks.

PRODUCT SPECIFICATION
TRANSMISSION PERFORMANCE
Meets all requirements specified in connecting hardware rewuirement of:
Draft ISO/IEC 11801 amendment 2, Category 6A
Draft ISO/IEC 60603-7-41 ANSI/TIA-568-C.2, Category 6A

ELECTRICAL
Electrical Insulation Resistance: 500 MO min. @100V d.c.
Dielectric Withstanding Voltage: 1000V d.c. or a.c.
Peak Contact to Contact @ 60Hz for 1 minute, 1500V d.c. or a.c.
Peak Contanct Panel to Panel @ 60Hz for 1 minute

MECHANICAL
Insertion/Extraction Life : 750 Cycles Minimum
IDC Wire Gauge : 22 ~ 24 AWG

PHYSICAL
Housing : High-Impact, Flame-Retardant Plastic, UL 94V-0
Spring Wire : Phosphor Bronze Alloy Plated with 50 micro-inch of gold
IDC : Phospor Bronze Alloy with 100 micro-inch 100% Sn Alloy

PACKAGING INCLUDES:
* RJ45 Shielded Jacks x 10

PRODUCT FEATURE
* ISO/IEC 11801 compliant.
* UL 94V-O rated.
* Solid 22-24 AWG diameter conductors.
* Universal colour-coding 568A/568B.
* Serveredge Quick Tool (QTKS) compatible
