All stock codes associated to this product
ZD4A043-30PE00EZ, ZD4A04330PE00EZ, 5328303

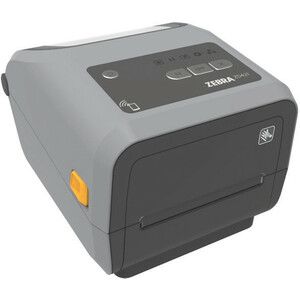

ZEBRA THERMAL TRANSFER PRINTER 74/300M ZD421 300 DPI USB USB HOST ETHERNET BTLE5 APAC CORD BUNDLE EU UK AUS JP SWISS FONT EZPL
Elevate your expectations: the advanced desktop printerthat delivers the features, flexibility, reliability and security you need
You need a reliable printer that delivers quality performance, now and for years to come. It needs to offer key features, and be easy to setup, operate, manage and maintain - onsite or remotely. It needs to be secure, whether it is integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it. Zebra delivers it, for more than 50 years. We design our printers to match your workflows, ensuring they are hassle-free and ready to work. Day in and day out. We're always innovating to deliver the best to help you advance your business and be ready for what's next. Building on the legacy of Zebra's popular GK Series, ZD421 printers add even more capabilities and security measures to set you up for years of use.
It's Time to Advance
Migrate from G to Z
The ZD421 builds on the legacy of Zebra's GK Series printers, offering you the functions and capabilities of its predecessor -and much more. The next-generation ZD421 leverages this heritage to deliver advanced features for a new era of intelligence and forward flexibility.
Simple to Use
Intuitive and Powerful Operation
The ZD421 offers new, advanced features that make it stand apart. It includes a new, more intuitive user interface, powerful architecture and field-upgradeable wireless kit. It also has new media guide and media handling designs that make daily operation even easier
Flexible to Support Nearly Every Use Case
Multiple Models to Match Your Needs
Available in direct thermal, thermal transfer, healthcare and ribbon cartridge models, the ZD421 meets a wide variety of application requirements.
Ready for Now and What's Next
Get Years of Printing Performance
The ZD421 is designed to handle advancing technology. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD420 Series and 700% more than the GK Series. This lets you run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.
Features- Print methods: Thermal Transfer or Direct Thermal
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface
- USB 2.0, USB Host
- Printer setup mobile app for Android &OS via BLE (Bluetooth Low Energy 5) connection
- Real Time Clock (RTC)
- Dual-wall frame construction
- ENERGY STAR certified
- PDF Direct
- Two-year standard warranty
Memory
Warranty
Interfaces/Ports
Network &Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC |
| Power Source | AC Supply |
Environmental Conditions
| Storage Relative Humidity | 5% - 95% |
| Storage Temperature | -40°C - 60°C |
| Operating Temperature | 4.4°C - 40.6°C |
| Operating Relative Humidity | 10% - 90% |
Technical Information
| Application/Usage | Desktop |
| Barcode Symbology Supported | UPC-E |
| ISBT-128 |
| PDF417 |
| Interleaved 2 of 5 |
| UPC 2 or 5 Digit Extension |
| Data Matrix |
| MSI |
| Code 128 |
| EAN-13 |
| Micro PDF |
| LOGMARS |
| AZTEC |
| QR Code |
| Maxi Code |
| Codablock |
| POSTNET |
| EAN-8 |
| Codabar |
| Industrial 2 of 5 |
| UPC-A |
| Plessey |
| Standard 2 of 5 |
| Code 49 |
| Code 11 |
| Planet Code |
| Code 93 |
| Code 39 |
| Maximum Print Width | 108 mm (4.25") |
| Recommended Use | Label/Receipt Print |
| Connectivity Technology | Wired |
| Features | Status Indicator |
| Dual Wall Frame |
| Maximum Mono Print Speed | 102 mm/s |
| Mobile Device Printing | Yes |
| Print Color Capability | Monochrome |
| Optional Connectivity | Serial (RS-232) |
| Near Field Communication (NFC) |
| Wireless LAN |
| Real Time Clock | Yes |
| Maximum Print Resolution (dpi) | 300 |
Physical Characteristics
| Weight (Approximate) | 2.05 kg |
| Form Factor | Portable |
| Height | 189 mm |
| Width | 203.2 mm |
| Depth | 266.7 mm |
Fonts &Emulation
| Language Emulation | ZPL II |
| EPL |
| EPL2 |
| ZPL |
| XML |
| ZBI |
General Information
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | ZD4A043-30PE00EZ |
| Manufacturer Website Address | https://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD421 |
| Product Name | ZD421 Thermal Transfer Printer |
| Brand Name | Zebra |
Miscellaneous
| Package Contents | - ZD421 Thermal Transfer Printer
- Empty Ribbon Take-UP Cores (1 in. and 0.5 in.)
- 2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
- AC Power Supply
- Power Cord(s)
- USB Cable
- Quick Start Guide
- Regulatory Guide
|
| Platform Supported | PC |
| iOS |
| Android |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Cables Included | USB |
| AC |
| Energy Star | Yes |
| Power Cable Localization | AUS |
| JP |
| UK |
| EU |
Media Types &Handling
| Media Thickness | 4826 µm |
| Maximum Roll Diameter | 127 mm |
| Media Type | Tag Stock |
| Receipt |
| Continuous Label |
| Black Mark |
| Roll Fed |
| Continuous Receipt |
| Wristband |
| Fanfold |
| Gap |
| Die-cut Label |
| Label |
| Reflective |
| Media Sensor | Full Width Sensor |
| Multi-position Transmissive/Gap Sensor |
| Moveable Reflective/Black Mark Sensor |
| Maximum Label Width | 112 mm |
| Maximum Label Length | 991 mm |
