All stock codes associated to this product
ZD4AH42-D0PE00EZ, ZD4AH42D0PE00EZ, 5328331

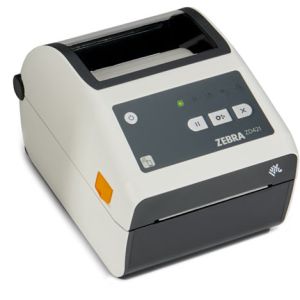

ZEBRA ZD421-HC Thermal Transfer Healthcare Printer - 203dpi, USB, USB Host, Ethernet, BTLE5, APAC Cord Bundle (EU, UK, AUS, JP), Swiss Font, EZPL
ELEVATE YOUR EXPECTATIONS WITH ZEBRA'S ADVANCED HEALTHCARE DESKTOP PRINTERS
You need a reliable printer built for healthcare that delivers quality performance, now and for years to come. It needs key features, and be easy to setup, operate, manage and maintain-onsite or remotely. It needs to be secure to protect patient information, whether integrated onto your network or not, to prevent downtime and costly cyberattacks. You need it, and Zebra delivers it, for more than 50 years. We've engineered our healthcare printers to match your workflows for hassle-free performance. Building on the legacy of Zebra's GK Series and ZD420 healthcare printers, the ZD421 delivers the flexibility and reliability you need, with even more capabilities and security, to set you up for years of use.
IT'S TIME TO ADVANCE
Migrate from G to Z
The ZD421 builds on the legacy of Zebra's GK Series and ZD420 Series printers, offering you the functions and capabilities of its predecessor-and much more. The next-generation ZD421 leverages this heritage to deliver advanced features for a new era of intelligence and forward flexibility, packaged in a ready-to-work healthcare model.
ADVANCE YOUR HEALTHCARE WORKFLOWS
Easy to Clean, Sanitize and Safely Power
Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD421 healthcare printer easy to clean and sanitize, helping prevent the spread of infections in hospitals and clinics. And, the power supply is IEC 60601-1 compliant for use in healthcare facilities.
SIMPLE TO USE
Intuitive and Powerful Operation
The ZD421 offers new, advanced features that make it stand apart. It includes a new, more intuitive user interface, powerful architecture and field-upgradeable wireless kit. It also has new media guide and media handling designs that make daily operation even easier.
SUPPORTS NEARLY EVERY USE CASE
Multiple Models to Match Your Needs
Available in direct thermal, thermal transfer and ribbon cartridge models, all specifically for healthcare, the ZD421 healthcare printer meets a wide variety of healthcare-specific use cases and requirements.
READY FOR NOW AND WHAT'S NEXT
Get Years of Printing Performance
Featuring an innovative architecture, the ZD421 is engineered to power future printing. It's 30% more powerful than the ZD420 Series and 700% more than the GK Series. Perform more operations simultaneously, maintain security and be ready for what's next.
Backwards Compatible with Virtually Any Existing Printer
Deploy your ZD421 into your existing printer fleet with confidence. Use the same label formats and applications you're using today. It supports both EPL and ZPL printer languages, and can emulate languages normally associated with other printer brands using Zebra's Print DNA tool, Virtual Devices.
Features- Print methods: Thermal Transfer or Direct Thermal
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface
- USB 2.0, USB Host
- Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection
- Real Time Clock (RTC)
- OpenACCESS for easy media loading
- Dual-wall frame construction
- ENERGY STAR certified
Memory
Warranty
Interfaces/Ports
USB | Yes |
Serial Port | Yes |
USB Host | Yes |
Network &ommunication
Bluetooth | Yes |
Ethernet | Yes |
Ethernet Technology | Ethernet |
Power Description
Input Voltage | 120 V AC |
230 V AC |
Power Source | AC Supply |
Technical Information
Application/Usage | Desktop |
Barcode Symbology Supported | Codabar |
Maxi Code |
Code 128 |
Planet Code |
Code 39 |
Micro PDF |
Code 93 |
EAN-8 |
EAN With 2 or 5 Digit Extension |
Code 11 |
Standard 2 of 5 |
UPC-A |
UPC-E |
Codablock |
Interleaved 2 of 5 |
LOGMARS |
EAN-13 |
PDF417 |
QR Code |
UPC 2 or 5 Digit Extension |
AZTEC |
Industrial 2 of 5 |
Data Matrix |
Code 49 |
MSI |
Plessey |
ISBT-128 |
POSTNET |
Maximum Print Width | 104 mm (4.09") |
Recommended Use | Label/Receipt Print |
Connectivity Technology | Wired |
Features | Dual Wall Frame |
UV Resistant Housing |
Status Indicator |
Maximum Mono Print Speed | 152 mm/s |
Mobile Device Printing | Yes |
Print Color Capability | Monochrome |
Optional Connectivity | Wireless LAN |
Real Time Clock | Yes |
Maximum Print Resolution (dpi) | 203 |
Environmental Conditions
Storage Relative Humidity | 5% - 95% |
Storage Temperature | -40°C - 60°C |
Operating Temperature | 4.4°C - 40.6°C |
Operating Relative Humidity | 10% - 90% |
Fonts &mulation
Language Emulation | ZPL II |
XML |
ZBI |
EPL2 |
Physical Characteristics
Weight (Approximate) | 2.05 kg |
Form Factor | Portable |
Height | 189 mm |
Width | 203.2 mm |
Depth | 266.7 mm |
General Information
Product Type | Thermal Transfer Printer |
Manufacturer Part Number | ZD6AH42-D0PF00EZ |
Manufacturer Website Address | https://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZD421-HC |
Product Name | ZD421-HC Thermal Transfer Printer |
Brand Name | Zebra |
Miscellaneous
Package Contents | - ZD421-HC Thermal Transfer Printer
- Empty Ribbon Take-UP Cores (1 in. and 0.5 in.)
- 2 x 300 m Ribbon Core Adapters for Non-Zebra Ribbon
- AC Power Supply
- Power Cord(s)
- USB Cable
- Quick Start Guide
- Regulatory Guide
|
Platform Supported | PC |
Android |
iOS |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Cables Included | USB |
AC |
Energy Star | Yes |
Power Cable Localization | JP |
EU |
AUS |
UK |
Media Types &andling
Media Thickness | 4826 µm |
Maximum Roll Diameter | 127 mm |
Media Type | Continuous Receipt |
Roll Fed |
Tag Stock |
Label |
Wristband |
Die-cut Label |
Continuous Label |
Fanfold |
Media Sensor | Full Width Sensor |
Moveable Reflective/Black Mark Sensor |
Multi-position Transmissive/Gap Sensor |
Maximum Label Width | 112 mm |
Maximum Label Length | 991 mm |
