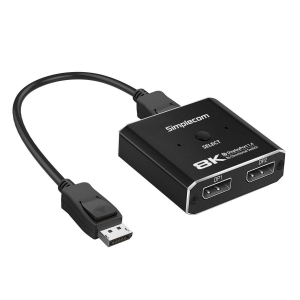

Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch Selector
DP1.4 8K
Overview
CM202 is bi-directional 2-way DisplayPort switch than can be used to switch
two different DisplayPort sources or DisplayPort displays. Toggle button allows
you to quickly select a video source or displays, without having to swap
cables.
You can connect two DisplayPort sources, such as laptop and PC, to one
DisplayPort on your monitor, and allow two DisplayPort sources to share one
DisplayPort on monitor. It also functions in the opposite direction, allows you
to connect a DisplayPort source for toggling between two monitors. Note that two
screens cannot display simultaneously under 1 input 2 outputs
mode.
This switch is DisplayPort 1.4 compliant, and provides high bandwidth up to
32Gbps, which support video output up to 8K@30hz. Portable and compact size,
easy to install. The durable aluminium alloy housing can efficiently dissipate
heat to ensure durability and safe usage.
Features
- Bi-Directional DisplayPort switch for toggling between 2 DP sources or
displays
- Quickly switch video sources or displays without having to swap
cables
- Durable aluminium alloy casing, also efficiently dissipate
heat
- Portable and compact size, easy to install
- DisplayPort 1.4 compliant, support bandwidth up to 32Gbps
- Backwards compatible with previous DP version
- Support video resolution up to 8K@30hz
- Plug and Play, Powered by USB
Specifications
- Model: CM202
- DisplayPort Version: DP 1.4
- Video Resolution Support: up to 8K@30Hz, 4K@120Hz, 2K@144Hz,
1080P@240Hz
- HDR Support: Yes
- Max Bandwidth: 32Gbps
- Max cable distance: 3M (Input + Output)
- Max Operation Current: 0.5A
- Power Input: USB-C, DC 5V (power adapter is not included)
- Operating Temperature: (-15 to +55C)
- Dimension (L x W x H): 59x53x15mm
- Weight: 35g
Package Contents
- 1 x Bi-Directional DisplayPort Switch
- 1 x DisplayPort cable
- 1 x USB Power Cable
Important Notes:
- For stable connection, the max total cable length of is 3M (Input +
Output)
- This is a manual DisplayPort switch and does not support automatic
switching
- Powered by USB, with USB-C power cable that can be plugged to USB port on
computer or USB charger
- Two screens cannot display simultaneously under 1 Input 2 Outputs
mode
