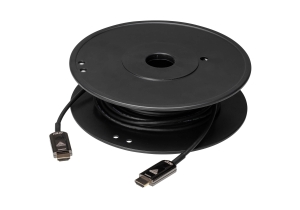

Aten VE781020 20M True 4K HDMI Active Optical Cable (True 4K@20m)



Overview

ATEN VE781020 True 4K HDMI Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 20m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781020 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

  • Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
  • HDMI (3D, Deep Color, True 4K, HDR, ARC); HDCP 2.2 compliant
  • Extends True 4K signals up to 20m
  • Reduced EMI and RFI for lower noise interference
  • High data transfer rate of 18 Gbps
  • Supports multi audio channel Dolby TrueHD and DTS-HD Master Audio
  • Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
  • Plug-and-play

Specifications

Cable Length

20M / 65.6ft

Cable Type

Hybrid type with optical fiber (OM3) and copper wire

Video Input

Interfaces

1 x HDMI 19-pin Type-A Male

Video Output

Interfaces

1 x HDMI 19-pin Type-A Male

Video

Max. Data Rate

18 Gbps (6 Gbps per Channel)

Max. Pixel Clock

600 MHz (Max.)

Max. Resolutions / Distance

Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 20M

*Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0

*Color Depth: 30 / 36 / 48 bit

Compliance

HDMI (3D, Deep Color, 4K, HDR, ARC)

HDCP 2.2

Communication

Signals

TMDS / HDCP 2.2 / EDID / CEC

Audio

Input

PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio

Output

PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio

Conductor

Construction

7 x Tinned Copper wire strand

4 x OM3 Optical Fiber (50/125um)

Notification

Bend Radius: 20mm (Min.)

Compression Load Resistance: Max. 50kg (500N)

Cable Filler: Kevlar

Cable Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC ZONE/DEVICE

* NO external power required

Certifications

Certifications

Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1

EMC Class-A / Class-B

Power Consumption

DC5.0V:0.25W:0.05ABTU

Jacketed

Material

PVC (85P)

Color: Black

Environmental

Operating Temperature

0C to 50C (32 to 122)

Storage Temperature

-20C to 70C (-4 to 158)

Humidity

0 - 85% RH, Non-Condensing

Physical Properties

Housing

Connector Case: Zinc Alloy

Weight

0.65 kg ( 1.43 lb )

Cable Outer Dimension

4.5mm ( 0.2mm)

Carton Lot

5 pcs
