Aten VK430 Room Booking System - 10.1" RBS Panel
Overview

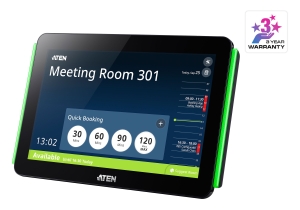

ATEN VK430 RBS Panel is a 10.1" touch-screen panel used to manage conference
rooms, and is centrally configured by ATEN RBS Configurator centralized
management software of RBS Panels while integrating with calendar servers, such
as Microsoft Office 365 Calendar, Google Workspace Calendar, and Microsoft
Exchange Server to provide convenient scheduling and availability allocation for
all conference rooms in the system.That is, through a few simple taps,
authorized personnel can make conference room reservations, extend or release
room usage, and check the booking schedules of any conference room directly on
the VK430 while enjoying its user-friendly interface. In addition, through ATEN
RBS Configurator, administrators can have a centralized view of the
availabilities and locations of all conference rooms in real time as well as
manage each VK430 connected from afar, elevating meeting room utilization
efficiency.
Highlighted features of the VK430 include its Power over Ethernet (PoE)
support and two illuminating LED bars. With PoE, VK430 can transmit data while
receiving power over a single Ethernet cable, which effectively reduces
installation costs and power consumption. The two LED light bars, one on each
side, illuminates in user-defined colors to indicate the availability status of
the conference room, available, reserved, or occupied, and allow users to know
the rooms availability at a glance.
Without compromise on aesthetics, VK430 features a sleek and elegant housing
that supports 75*75 mm VESA-compliant mounting options to suit various
installation scenarios. VK430 is preinstalled with its standard wall mount kit
while providing 3M VHB Tape for it to be easily installed onto a hard or glass
wall.
The VK430, along with the ATEN RBS Configurator, delivers an enterprise-grade
room management solution perfect for all business environments, making meeting
room management a breeze while elevating the overall room-booking
experience.
- 10.1" capacitive touch-screen panel
- Natively installed with the ATEN RBS app for integration with calendar
servers, such as Microsoft Office 365 Calendar, Google Workspace Calendar, and
Microsoft Exchange Server
- Supports Power over Ethernet (PoE), which allows it to receive power and
communication over a single Ethernet cable
- LED light bars illuminating user-defi ned colors to indicate the rooms
availability at a glance
- Preinstalled with a wall mount kit and provided with 3M VHB Tape for easy
mounting onto a hard or glass wall
- 75*75 mm VESA-compliant for fl exible mounting across various installation
scenarios
Specifications
|
Panel
Spec |
|
Display
Type |
TFT-LCD |
|
Size |
10.1" |
|
Touch
Screen |
Capacitive |
|
Resolution |
1280
x 800 |
|
Aspect
Ratio |
16:10 |
|
Color
Depth |
8
bit |
|
Contrast
Ratio |
800:01:00 |
|
Backlight |
LED |
|
Viewing
Angle |
85
(H), 85 (V) |
|
Interfaces |
|
Ethernet |
1
x RJ-45 Female, 10 / 100 / 1000 BaseT |
|
USB |
1
x USB Type A |
|
Power
Inputs |
|
Power
over Ethernet (PoE) |
802.3
at PoE+ |
|
Power
Consumption |
DC12V:17.8W:60.70BTU |
|
POE:20W:68.24BTU |
|
Environmental |
|
Operating
Temperature |
0 40C |
|
Storage
Temperature |
10 55C |
|
Humidity |
10
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.90
kg ( 1.98 lb ) |
|
Dimensions
(L x W x H) |
26.30
x 17.78 x 3.72 cm |
|
(10.35
x 7 x 1.46 in.) |
|
Note |
No
license is required for running ATEN Room Booking System. However,
additional costs may be charged for the resource accounts by the calendar
service provider. |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
