All stock codes associated to this product
VE7831AAT, VE7831A-AT, KVAVE7831A, KVA-VE7831A

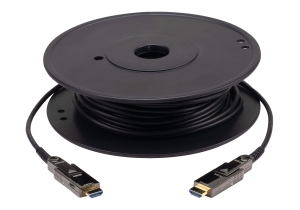

Aten VE7831A True 4K HDMI Active Optical Cable - 10m
Overview
ATEN VE7831A optical cables utilize AOC technology that enable conversion
between input signals and output signals for optimum high bandwidth data
transmissions. The EMI-resistant optical cables are available in 10m with full
support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards
and meet HDMI specifications including 3D, deep color, and data rates up to 18
Gbps. Supporting Dolby True HD and DTS-HD Master Audio, these optical cables
guarantee lossless audio signal transmissions.This cable series comes with an
HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a
cable, enabling Internet connection sharing and IP-based applications over HDMI.
Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to
and from the TV and audio system, thereby reducing the number of cables between
the television and external Home Theatre System or soundbar.
Engineered to meet the latest trend of integrator-friendly design, the
VE7831A optical cables feature pluggable gender and gold-plated connectors.
Therefore, the cables are ideal solutions for extending the reach of digital
signages in a wide range of settings, such as traffic stations, shopping
centers, and hospital facilities.
- HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2
compliant
- Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 10
m
- Supports HDR
- Supports HDMI Ethernet Channel (HEC) combines audio, video, and data
streams into a cable to simplify the set-up
- Supports Audio Return Channel (ARC) connects TV and audio system,
eliminating the need for an additional cable
- Reduced EMI and RFI for lower noise interference
- Supports multi audio channel Dolby TrueHD and DTS-HD Master
Audio
- Robust cable pulling strength (Max. 10 kg) and compression load resistance
(Max. 50 kg)
- Additional power source is available via Micro USB cable for better
compatibility
- Gold-plated connectors for reliable transmissions
- Compliant with International Flame Retardant Standards : UL CMP-OF
(Plenum)
- Pluggable gender for easy installation
- Plug-and-play
Specifications
|
Cable
Length |
10M
/ 32.8 ft |
|
Cable
Type |
Cable
Type: Hybrid cable with optical fiber and copper
wire |
|
HDMI
Standards: High Speed HDMI Cable |
|
Video
Input |
|
Interfaces |
1
x HDMI 19-pin Type-A Male (gold-plated) pluggable
connector |
|
1
x HDMI Type-D Male |
|
Video
Output |
|
Interfaces |
1
x HDMI 19-pin Type-A Male (gold-plated) pluggable
connector |
|
1
x HDMI Type-D Male |
|
Video |
|
Max.
Data Rate |
18
Gbps (6 Gbps per Channel) |
|
Max.
Pixel Clock |
600
MHz (Max.) |
|
Compliance |
HDMI
(3D, Deep Color, 4K, HDR, HEC, ARC) |
|
HDCP
2.2 |
|
Color
sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 |
|
Color
Depth: 30 / 36 / 48 bit |
|
Max.
Resolutions / Distance |
Up
to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) /
10m |
|
Communication |
|
Signals |
TMDS
/ HDCP 2.2 / EDID / CEC |
|
Audio |
|
Input |
PCM
8-channel, Dolby Digital True HD, DTS-HD Master
Audio |
|
Output |
PCM
8-channel, Dolby Digital True HD, DTS-HD Master
Audio |
|
Conductor |
|
Construction |
7
x Tinned Copper Wire |
|
4
x OM3 Optical Fiber (50/125um) |
|
Jacketed |
|
Material |
UL
Plenum (CMP-OF) |
|
Certifications |
|
Certifications |
Safety
and Emission: CE / FCC / RoHS2 / UL CMP-OF |
|
Power
Consumption |
DC5.0V:0.25W:0.05ABTU |
|
Power
(Optional) |
Optional
power source: Micro USB to USB cable (100cm) |
|
5V,
250mW (max) |
|
Notification |
Bend
Radius: 20mm (Min.) |
|
Connector
Pull Strength: Max. 10kg (100N) |
|
Compression
Load Resistance: Max. 50kg (500N) |
|
Shielding
& Filling: AL Mylar shielding / Kevlar
Filling |
|
Environmental |
|
Operating
Temperature |
0C
to 50C (32
to 122) |
|
Storage
Temperature |
-20C
to 70C (-4
to 158) |
|
Humidity |
0
- 85% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Connector
Case: Zinc-Alloy |
|
Weight |
0.30
kg ( 0.66 lb ) |
|
Cable
Outer Dimension |
Cable
Outer Diameter: 4.5mm ( 0.2mm) |
|
Carton
Lot |
10
pcs |
