Scanning |
---|

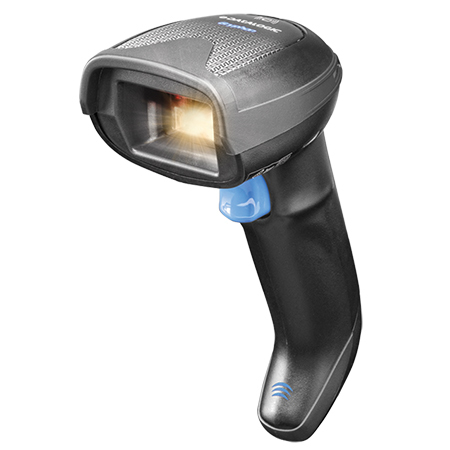

Type | Handheld bar code reader |
Sensor type | Laser |
Linear (1D) barcodes supported | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, PDF417, U.P.C. |
2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code |
Wavelength | 650 nm |
Scanner type | 1D/2D |
Tilt reading angle | 0 - 360° |
Pitch reading angle | -65 - 65° |
Yaw reading angle | -65 - 65° |
Light levels (direct sunlight) | 0 - 100000 lx |
Optical sensor resolution (W x H) | 1280 x 800 pixels |
Ports & interfaces |
---|
Connectivity technology | Wired & Wireless |
Wireless range | 50 m |
Operating frequency | 433 MHz |
Standard interfaces | RF Wireless, USB |
Performance |
---|
Product colour | Black |
International Protection (IP) code | IP52 |
Light levels (direct sunlight) | 0 - 100000 lx |
Design |
---|
Product colour | Black |
Type | Handheld bar code reader |
International Protection (IP) code | IP52 |
Power |
---|
Power source type | Battery |
Battery technology | Lithium-Ion (Li-Ion) |
Battery capacity | 3250 mAh |
Battery voltage | 12 V |
Number of reads per charge | 80000 |
Charging time | 4 h |
Input voltage | 4.5 - 14 V |
Weight & dimensions |
---|
Width | 109 mm |
Depth | 68 mm |
Height | 166 mm |
Weight | 235 g |
Packaging data |
---|
Charging base | Yes |
Cables included | USB |
Operational conditions |
---|
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 0 - 95% |
Light levels (direct sunlight) | 0 - 100000 lx |
Technical details |
---|
Sustainability certificates | RoHS |
Harmonized System (HS) code | 84716070 |
Packaging content |
---|
Charging base | Yes |
Cables included | USB |
