All stock codes associated to this product
DP2HDMIADAP, 1600225, 0065030832427
| Ports & interfaces |
|---|
| DisplayPort version | 1.2 |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Design |
|---|
| Product colour | Black |
| Performance |
|---|
| Converter type | Passive video converter |
| Supported video modes | 1080p |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Plug and Play | Yes |
| Audio support | Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 0 - 65% |
| Operating temperature (T-T) | 5 - 35 °C |
| Sustainability |
|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions |
|---|
| Width | 18 mm |
| Depth | 55 mm |
| Height | 9 mm |
| Weight | 16 g |
| Packaging data |
|---|
| Package width | 90 mm |
| Package depth | 125 mm |
| Package height | 11 mm |
| Package weight | 18 g |
| Technical details |
|---|
| Sustainability certificates | CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case | 600 pc(s) |
| Master (outer) case width | 332 mm |
| Master (outer) case length | 498 mm |
| Master (outer) case height | 236 mm |

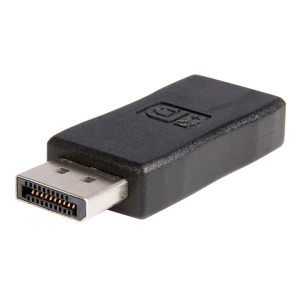

Connect your HDMI monitor or HDTV to a DisplayPort equipped computer
The DP2HDMIADAP DisplayPort to HDMI Adapter provides a DisplayPort male and HDMI female connector, allowing you to keep your existing (HDMI) display while using a DisplayPort video card/source.
Supporting display resolutions of up to 1920x1200 (computer)/1080p (HDTV), this cost-effective solution maintains the incredible graphical performance offered by DisplayPort, while eliminating the cost of having to upgrade your HDMI-capable display to a display with built-in DisplayPort support.
DP2HDMIADAP is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Simple, small form factor converter makes a DisplayPort video card backward compatible with your HDMI display
- Easy to use, no software or drivers required
