All stock codes associated to this product
DP2HD4KADAP, 3016325, 0065030861908
Ports & interfaces |
---|
DisplayPort version | 1.2 |
Connector 1 | DisplayPort |
Connector 2 | HDMI |
Connector 2 gender | Female |
Connector 1 gender | Male |
Connector 2 form factor | Straight |
Connector 1 form factor | Straight |
Design |
---|
Product colour | Black |
Certification | CE, FCC, RoHS |
Performance |
---|
Converter type | Passive video converter |
Supported video modes | 1080p, 720p |
DisplayPort version | 1.2 |
Product colour | Black |
Maximum resolution | 3840 x 2160 pixels |
Certification | CE, FCC, RoHS |
Audio support | Yes |
Operational conditions |
---|
Storage temperature (T-T) | -10 - 70 °C |
Relative humidity | 10 - 85% |
Operating temperature (T-T) | 0 - 60 °C |
Sustainability |
---|
Sustainability certificates | RoHS |
Weight & dimensions |
---|
Width | 21 mm |
Depth | 64 mm |
Height | 11 mm |
Weight | 7.5 g |
Packaging data |
---|
Package width | 98 mm |
Package depth | 145 mm |
Package height | 26 mm |
Package weight | 36 g |
Technical details |
---|
Host interface | DisplayPort |
Sustainability certificates | RoHS |
Logistics data |
---|
Products per master (outer) case | 200 pc(s) |
Master (outer) case width | 520 mm |
Master (outer) case length | 530 mm |
Master (outer) case height | 310 mm |

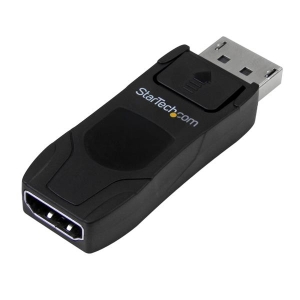

Connect your 4K HDMI display to a DP video source using this compact, passive adapter
This DisplayPort to HDMI adapter supports 4K video resolution, Â enabling you to connect DisplayPort devices, such as an Ultrabook or desktop computer, to a 4K Â HDMI Â display or projector.
Astonishing 4K picture quality
You will be amazed at how this adapter flawlessly  manages your  graphics-intensive  content. With support for resolutions up to 4K - four times the resolution of high-definition 1080p -  its  lossless performance makes the adapter  the ideal solution for high-resource applications  such as  graphic design, CAD &  CAM design, or health care  imaging (MRI, radiology  diagnostics, etc.). Â
Plus, the 4K adapter supports  1080p displays, which makes it a great accessory for home, office or other workspace applications.
Arrive prepared, wherever you go
This DP to HDMI  adapter is extremely portable, with a lightweight, small-footprint design. It’s the perfect accessory to carry with your Ultrabook, fitting easily into your laptop  bag or carrying case. Its ultra-portable design makes the adapter ideal for BYOD (Bring Your Own Device) applications at the office, and enables you to arrive prepared when you’re presenting to a potential client, teaching off-site, or traveling to meet with a customer.
The DP2HD4KADAP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- PERFORMANCE: DisplayPort 1.2 to HDMI 1.4 adapter directly connects your DP host to an HDMI display, monitor or TV
- Supports Ultra HD (UHD) 4K 30Hz (3840x2160) and 1920x1200 (1080p) video, 7.1ch Audio, HDCP 1.4
- HOST COMPATIBILITY: Passive DisplayPort to HDMI adapter requires DP++ source connector incl workstations, desktops (AMD Radeon Pro/Nvidia RTX/Quadro), laptops, small form factor computers & docking stations
