All stock codes associated to this product
USB3AAEXT5M, 1991390, 0065030846301
| Features |
|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 5 m |
| Connector contacts plating | Nickel |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current (max) | 2 A |
| Input current (max) | 0.35 A |
| Weight | 250 g |
| Quantity per pack | 1 pc(s) |
| Power |
|---|
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current (max) | 2 A |
| Input current (max) | 0.35 A |
| Weight & dimensions |
|---|
| Weight | 250 g |
| Package width | 147 mm |
| Package depth | 228 mm |
| Package height | 52 mm |
| Package weight | 460 g |
| Packaging data |
|---|
| Package width | 147 mm |
| Package depth | 228 mm |
| Package height | 52 mm |
| Package weight | 460 g |
| Quantity per pack | 1 pc(s) |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733080 |

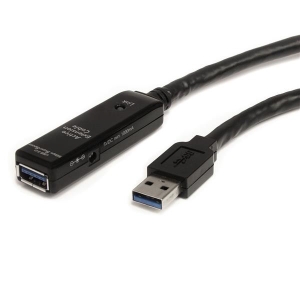

The USB3AAEXT5M, 5-meter Active USB 3.0 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.0 devices of up to 5-meters (16-feet). An all in one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.0 extension cable incorporates bus powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 4 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable. The USB3AAEXT5M extension cable (USB Extender) supports high speed USB 3.0 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage - Extends a USB 3.0 device connection by an additional 5m (16ft) or cascade up to 4 levels for 20m (64ft) - Powered directly from the USB port or through the included Universal external power adapter - Backed by a StarTech.com 2-year warranty and free lifetime technical support
