All stock codes associated to this product
USBPNLBFBM3, 2503080, 0065030852128
| Features |
|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| Cable shielding | Aluminum mylar foil |
| USB version | USB 2.0 |
| Connector 1 | USB B |
| Connector 2 | USB B |
| Cable length | 0.91 m |
| Connector contacts plating | Nickel |
| Product colour | Black |
| Maximum data transfer rate | 480 Mbit/s |
| AWG wire size | 24/28 |
| Certification | CE, UL, REACH |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Weight | 45 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions |
|---|
| Weight | 45 g |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 21 mm |
| Package weight | 100 g |
| Packaging data |
|---|
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 21 mm |
| Package weight | 100 g |
| Quantity per pack | 1 pc(s) |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
Panel-mount a USB-B port, for easy access

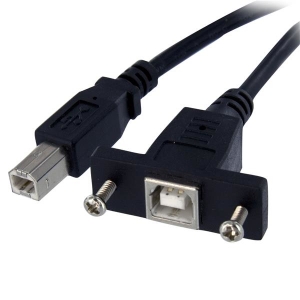

The USBPNLBFBM3 3ft Panel Mount USB Cable features one USB-B male connector on one end and a USB-B panel mount female port on the other, providing a convenient solution for custom enclosures (e.g. internally mounted hard drives).
Offering 3ft in cable length, the adapter allows you to extend the connection as needed within the system case.
The USBPNLBFBM3 is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
- Customize your solutions by mounting a USB-B port to your custom enclosures
- Configure your systems as needed, extend your USB-B connection by 3ft
- Guaranteed reliability
