All stock codes associated to this product
MXTMMHQ15M, 1722033, 0065030843737
Features |
---|
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Cable shielding | Aluminum mylar foil |
Cable rating | CMG (CM) |
Number of conductors | 14 |
Impedance | 75 Ω |
Cable length | 15 m |
Connector 1 | VGA (D-Sub) |
Connector 2 | VGA (D-Sub) |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector contacts plating | Nickel |
Product colour | Black |
AWG wire size | 28 |
Supported graphics resolutions | 1920 x 1200 (WUXGA) |
Plug and Play | Yes |
Certification | CE, REACH |
Quantity per pack | 1 pc(s) |
Cable jacket material | Polyvinyl chloride (PVC) |
Operational conditions |
---|
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | -20 - 80 °C |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions |
---|
Weight | 1.4 kg |
Package width | 255 mm |
Package depth | 330 mm |
Package height | 61 mm |
Package weight | 1.4 kg |
Packaging content |
---|
Quantity per pack | 1 pc(s) |
Technical details |
---|
Sustainability certificates | RoHS |
Harmonized System (HS) code | 84733080 |
Connect your VGA monitor with the highest quality connection available

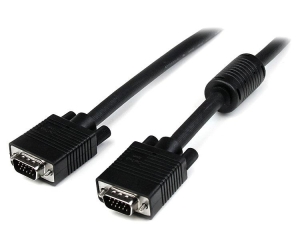

The MXTMMHQ15M High Resolution VGA Cable (15-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores to help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
