All stock codes associated to this product
HSB220SAT25B, 1597317, 0065030827980
| Features |
|---|
| LED indicators | Activity, Power |
| Certification | CE, FCC, REACH |
| Supported storage drive heights | 9.5 mm |
| Type | Bezel panel |
| Size (imperial) | 8.89 cm (3.5") |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Product colour | Black |
| Material | Aluminium |
| Technical details |
|---|
| LED indicators | Activity, Power |
| Certification | CE, FCC, REACH |
| Supported storage drive heights | 9.5 mm |
| Type | Bezel panel |
| Size (imperial) | 8.89 cm (3.5") |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Product colour | Black |
| Material | Aluminium |
| Package width | 126 mm |
| Package height | 54 mm |
| Package depth | 171 mm |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Weight & dimensions |
|---|
| Width | 102 mm |
| Weight | 286 g |
| Height | 24 mm |
| Depth | 134 mm |
| Packaging data |
|---|
| Package weight | 481 g |
| Package width | 126 mm |
| Package height | 54 mm |
| Package depth | 171 mm |
| Packaging content |
|---|
| Screws included | Yes |
| Manual | Yes |
| Cables included | SATA |
| Sustainability |
|---|
| Sustainability certificates | RoHS |

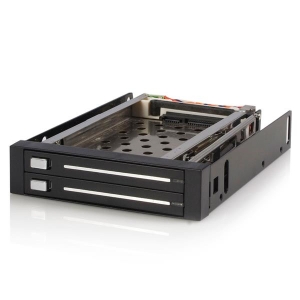

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay. Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
The StarTech.com Advantage - Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller - Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design - Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay
