All stock codes associated to this product
HSB225S3R, 4018488, 0065030872454
| Features |
|---|
| LED indicators | Activity, Fault, Link |
| Certification | CE, FCC, REACH |
| Number of cycles | 50000 |
| Hot-swap | Yes |
| Key lock | No |
| Supported storage drive heights | 5,7,9.5 mm |
| Type | Carrier panel |
| Size (imperial) | 8.89 cm (3.5") |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium, Plastic |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, BIG, JBOD |
| Chipset | ASMedia - ASM1092R |
| Technical details |
|---|
| LED indicators | Activity, Fault, Link |
| Certification | CE, FCC, REACH |
| Number of cycles | 50000 |
| Hot-swap | Yes |
| Key lock | No |
| Supported storage drive heights | 5,7,9.5 mm |
| Type | Carrier panel |
| Size (imperial) | 8.89 cm (3.5") |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial ATA II, Serial ATA III |
| Data transfer rate | 6 Gbit/s |
| Product colour | Black |
| Material | Aluminium, Plastic |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, BIG, JBOD |
| Chipset | ASMedia - ASM1092R |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733080 |
| Ports & interfaces |
|---|
| Number of SATA connectors | 1 |
| Weight & dimensions |
|---|
| Width | 101 mm |
| Weight | 220 g |
| Height | 25 mm |
| Depth | 140 mm |
| Packaging data |
|---|
| Package weight | 345 g |
| Package dimensions (WxDxH) | 150 x 198 x 45 mm |
| Packaging content |
|---|
| Screws included | Yes |
| Manual | Yes |
| Cables included | SATA |
| Sustainability |
|---|
| Sustainability certificates | RoHS |

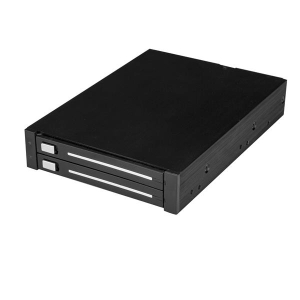

Easily connect and hot swap two 2.5 in. SATA hard drives or SSDs through a single 3.5 in. front bay
This HDD rack lets you install two 2.5" SATA hard drives or solid-state drives into a single 3.5" front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.
Flexible storage solution
Configure and arrange your drives for increased drive capacity, or add data redundancy, with built-in hardware RAID functionality. The HDD rack offers software and operating system independent operations and with multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.
Hot swap your SATA drives
This SATA backplane is trayless and hot-swappable, which makes it easy to install and remove your drives from your computer system when required, without having to open the case every time. It also provides a more convenient way to create backups for data recovery and archiving.
Designed for durability and trouble-free use
The removable hard-drive bay/backplane features durable aluminum construction for long-lasting performance. The SATA backplane also has LED indicators for power and hard drive activity, and drive status, which makes it easy to monitor the status of your hard drives and RAID array.
The HSB225S3R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- SATA III (6Gbps) drive interface, compatible with SATA I, II and III
- Increase drive capacity, performance, or data redundancy, with multiple RAID modes: RAID 0, RAID 1, spanning
- Supports up to two 2.5" SATA SSD/HDDs
