Features |
---|

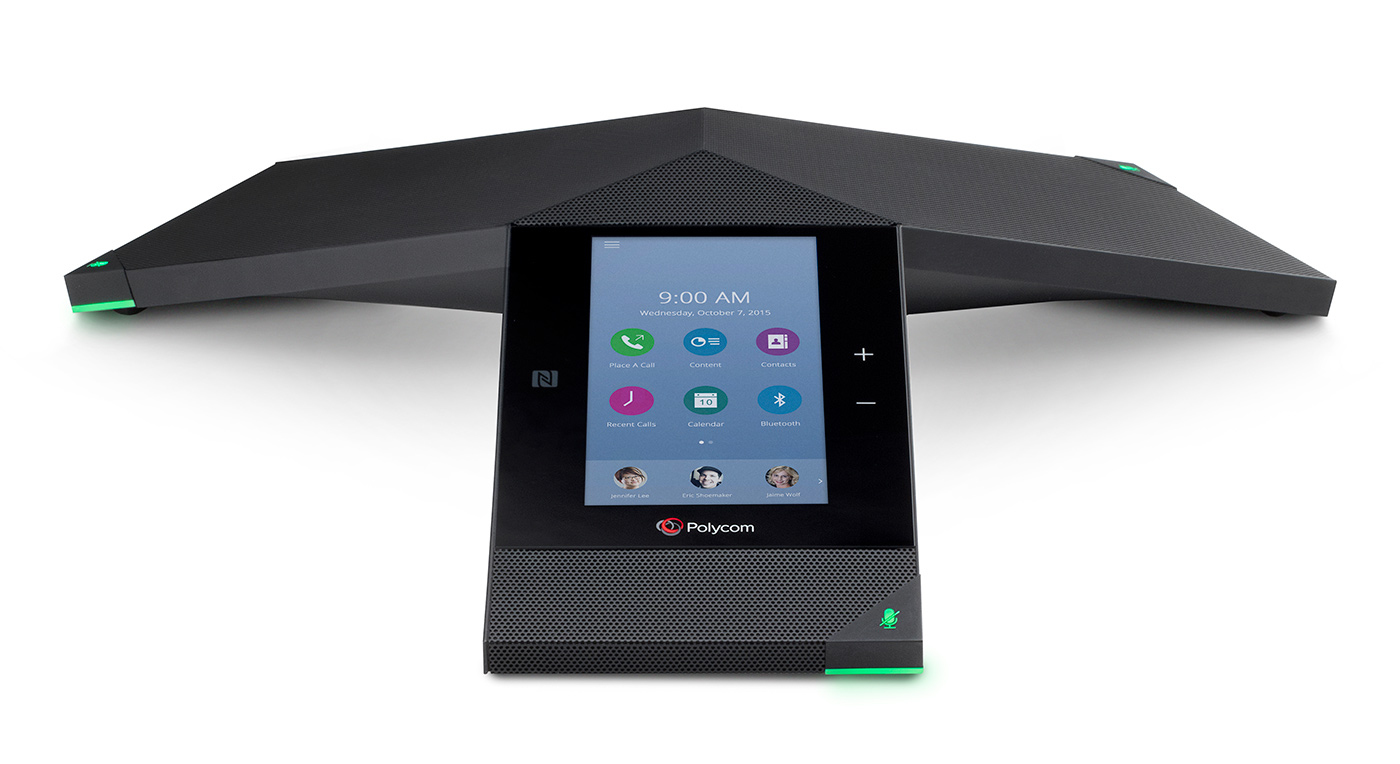

Product type | IP conference phone |
Recommended room size | Medium room |
Bridging capability | Yes |
Control type | Touch |
Product colour | Black |
Built-in display | Yes |
Display type | LCD |
Display diagonal | 12.7 cm (5") |
Display resolution | 720 x 1280 pixels |
Display illumination | Yes |
Voice codecs | G.711, G.719 |
Microphone direction type | Omnidirectional |
Frequency range | 100 - 22000 Hz |
Sound pressure level | 92 dB |
Echo cancellation | Yes |
Noise reduction | Yes |
Supports expansion microphones | Yes |
Wi-Fi | Yes |
Near Field Communication (NFC) | Yes |
Bluetooth | Yes |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Power over Ethernet (PoE) | Yes |
Supported network protocols | FTP, TFTP, HTTP, HTTPS |
Authentication method | 802.1X, EAPOL |
Quality of Service (QoS) support | Yes |
Memory card slot | No |
Call hold | Yes |
Call waiting | Yes |
Transfer incoming call | Yes |
Certification | Japan MIC/VCCI Class B, FCC Part 15 (CFR 47) Class B, ICES-003 Class B, EN55022 Class B, CISPR22 Class B, VCCI Class B, EN55024, EN61000-3-2; EN61000-3-3, NZ Telepermit, Australia A&C Tick, ROHS, 19471-0715 |
Bluetooth profiles | A2DP, HFP |
Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, SSL/TLS, WEP, WPA, WPA2 |
Conference call | Yes |
Call forwarding | Yes |
Microphone mute | Yes |
Call blocking | Yes |
Call transfer | Yes |
Call management |
---|
Speed dialling | Yes |
Do not disturb function | Yes |
Local dial plan | Yes |
Password protection | Yes |
Web-based management | Yes |
Ports & interfaces |
---|
RJ-45 ports quantity | 2 |
USB port | Yes |
USB version | 2.0 |
USB connector type | USB Type-A, USB Type-B |
USB ports quantity | 2 |
Technical details |
---|
Harmonized System (HS) code | 85176990 |
Operational conditions |
---|
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 70 °C |
Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions |
---|
Width | 332 mm |
Depth | 332 mm |
Height | 383 mm |
Weight | 950 g |
Packaging content |
---|
Manual | Yes |
Cables included | LAN (RJ-45), USB |
AC adapter included | Yes |
Ethernet cable | Yes |
Number of microphones included | 3 |
Quick installation guide | Yes |
