All stock codes associated to this product
50FIBLCLC2, 1861049, 0065030802871
| Features |
|---|
| Fibre optic type | OM2 |
| Cable length | 2 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 10 Gbit/s |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CE |
| Harmonized System (HS) code | 85447000 |
| Product colour | Orange |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Technical details |
|---|
| Harmonized System (HS) code | 85447000 |
| Sustainability certificates | REACH, RoHS |
| Doesn't contain | Halogen |
| Operational conditions |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions |
|---|
| Cable length | 2 m |
| Weight | 34 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 13 mm |
| Package weight | 43 g |
| Packaging data |
|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 13 mm |
| Package weight | 43 g |
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Quantity per pack | 1 pc(s) |

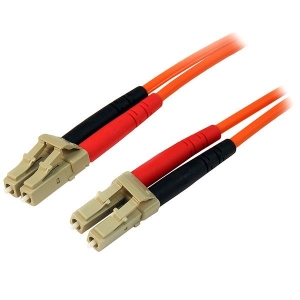

The 50FIBLCLC2 2m LSZH LC to LC Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications. This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.
The StarTech.com Advantage - LSZH-rated cable, suitable for installations under restrictive building codes - High-speed, high bandwidth transmissions over Gigabit Ethernet/fiber channel networks - Resistant to pulls, strains, and impacts during your cable installations and maintenance
