All stock codes associated to this product
450FBLCLC5, 3695897, 0065030870849
| Features |
|---|
| Fibre optic type | OM4 |
| Cable length | 5 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 100 Gbit/s |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CE |
| Wavelengths supported | 850 nm |
| Harmonized System (HS) code | 85447000 |
| Product colour | Aqua colour, Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Technical details |
|---|
| Harmonized System (HS) code | 85447000 |
| Sustainability certificates | REACH, RoHS |
| Doesn't contain | Halogen |
| Operational conditions |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions |
|---|
| Cable length | 5 m |
| Weight | 74 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 84 g |
| Packaging data |
|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 84 g |

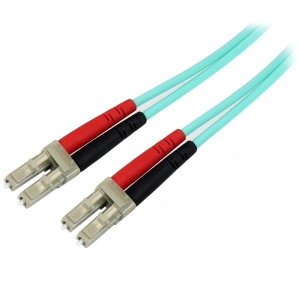

This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in 40 and 100 Gigabit networks. The OM4 cable supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources and is backward compatible with your existing 50/125 equipment. This Aqua OM4 duplex multimode fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. It's ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each OM4 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability. The 450FBLCLC5 from StarTech.com is backed by a lifetime warranty.
