IMG 1 of 1
Our Price:
$8,391.60
RRP:
$12,644.50
You Save:
$4,252.90
or quickly purchase this product
Backorder

Part Number:
527522
(?) Brand:
Manuf No:
UC-M50-Z-KIT
UCM50ZKIT
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

All stock codes associated to this product
UC-M50-Z-KIT, UCM50ZKIT

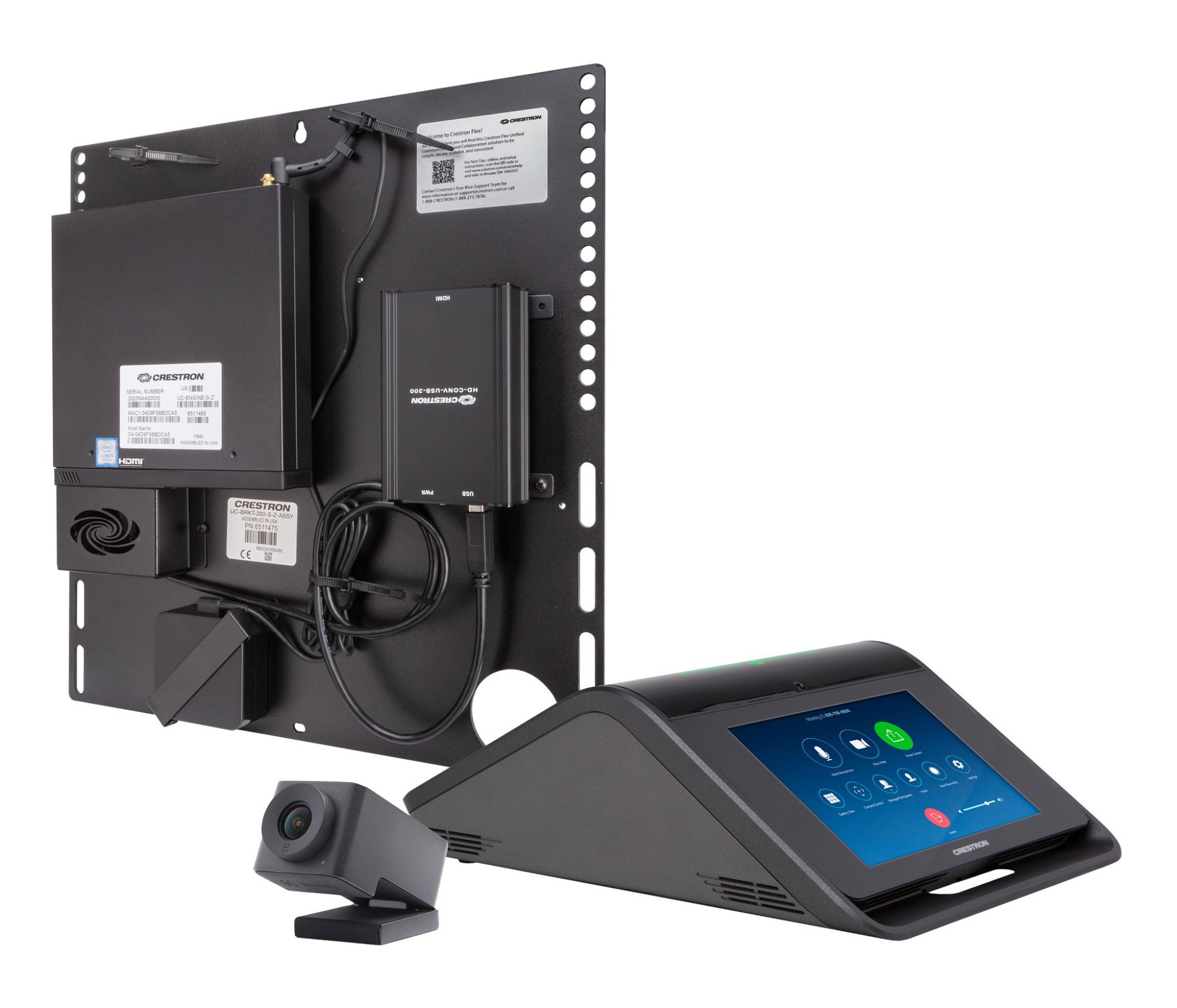

Crestron UC-M50-Z video conferencing system 12 MP Ethernet LAN Personal video conferencing system

Manufacturer: CRESTRON
Category: Telecom & Navigation
Sub-Category: Video Conferencing Systems
SKU: UC-M50-Z-KIT
EAN:

Description

The UC-M50-Z Crestron Flex tabletop conferencing system provides a medium room video conference solution for use with Zoom Rooms™ software. It supports single or dual video displays1 (not included) and features a Crestron Flex tabletop conference device, collaboration camera, UC bracket assembly, power supply, and cables. Native Zoom Rooms™ Software Experience The UC-M50-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing. Intuitive User Interface with Impressive Audio With a large 7 in. HD color touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (CCS‑UC‑1) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. Simplified Deployment The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.. High-Definition Video Conferencing The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra wide‑angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom detects the people in the room and frames them for an optimal view. Enterprise-Grade Security Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility. Easy Provisioning and Device Management The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to easily deploy and manage thousands of devices. The XiO Cloud service provides system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update. Premium‑Level Support Crestron Flex Care is an optional subscription service that automatically renews annually, providing 24/7 live remote technical support, an extended five year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Specifications

Technical details
Product typePersonal video conferencing system
Video
HD typeFull HD
Megapixel12 MP
Total megapixels12 MP
Audio
Output level0.5/95 dB
Microphone pick-up range6 m
Frequency range20 - 20000 Hz
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Power over Ethernet plus (PoE+) ports quantity1
USB connector typeUSB Type-B
USB 2.0 ports quantity1
Microphone inYes
Network
Cable standardCat5
Ethernet LANYes
Ethernet LAN data rates100 Mbit/s
Camera
Image sensor size1/2.3"
Field of view (FOV) angle150°
Effective sensor resolution12 MP
Sensor typeCMOS
Aperture range (F-F)2.8 - 2.8
Display
Built-in displayYes
DisplayTFT
Display diagonal17.8 cm (7")
Display resolution1280 x 800 pixels
TouchscreenYes
Touchscreen typeCapacitive
Microphone
Microphone direction typeBidirectional microphone
Number of microphones4
Features
Motion sensorYes
Motion sensor distance1.83 m
Weight & dimensions
Camera dimensions (WxDxH)36 x 41 x 72 mm
Width104 mm
Depth324 mm
Height227 mm
Weight2.5 kg
Camera weight120 g
Packaging content
Wall mounting kitYes
Packaging contentCrestron Flex tabletop conferencing device: Cable, CAT5e, RJ‑45‑to‑RJ‑45, 12 ft (3.66 m); Cable management hardware UC Bracket Assembly for Zoom Rooms systems, comprised of: UC Engine: ASUS Mini PC with Zoom Rooms video HD‑CONV‑USB‑200: HDMI® to USB 3.0 converter for content ingest Mounting hardware EDID Passthroughs: (2) HDMI Female-to-Male Collaboration Camera DisplayPort™ to HDMI Cable, 6 ft (1.8 m) USB Type‑C® right‑angle to USB A cable 6 ft (1.8 m) Ethernet LAN cable for UC Engine, RJ‑45‑to‑RJ‑45, black, 7 ft (2.1 m) HDMI Interface Cable, 6 ft (1.8 m) HDMI Interface Cable, 20 ft (6.1 m) USB Cable, USB Type A Male to Micro‑B Male cable, 6 ft (1.8 m) USB Extension Cable, USB Type A Male‑to‑Female, 15 ft (4.6 m) Universal power supply and power cord Wall Mount Kit for Crestron Cameras
Cables includedHDMI, LAN (RJ-45), USB Type-A to USB Type-C
Networking cable length3.66 m
AC adapter includedNo

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
