All stock codes associated to this product
RAG400WHANMCG2, R-AG400-WHANMC-G-2, CFDAG400WHARGB, CFD-AG400-WH-ARGB, 6933412727781
| Performance |
|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Hydro Dynamic Bearing (HDB) |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Noise level (high speed) | 31.6 dB |
| Maximum airflow | 75.89 cfm |
| Number of fans | 1 fan(s) |
| Design |
|---|
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Illumination colour | Amber, Blue, Green, Red |
| Product colour | White |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| LED connector type | 3-pin |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Power |
|---|
| Voltage | 12 V |
| Rated current | 0.28 A |
| LED voltage | 5 V |
| Fan power consumption | 3.36 W |
| LED power consumption (fan) | 1.05 W |
| Weight & dimensions |
|---|
| Width | 120 mm |
| Depth | 92 mm |
| Height | 150 mm |
| Weight | 614 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Other features |
|---|
| LED voltage | 5 V |

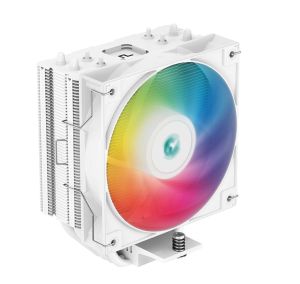

The DeepCool AG400 WH ARGB is a single tower 120mm CPU cooler that builds upon our legacy for high-quality cooling performance but stripped down for a streamlined and efficient package.
Stellar Thermal Performance Enjoy better system performance by keeping things cool with up to 220W of heat dissipation power featuring four direct touch heat pipes that rapidly draw heat away from the CPU. FAN LOCK MOUNTING SYSTEM When installing the AG400 WH ARGB, the fan does not need to be disassembled during the process, simplifying and saving time. Balanced Bidirectional Heat Pipe Technology By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range. High Efficiency Fans Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle. Simple and Secure The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
