Scanning |
---|

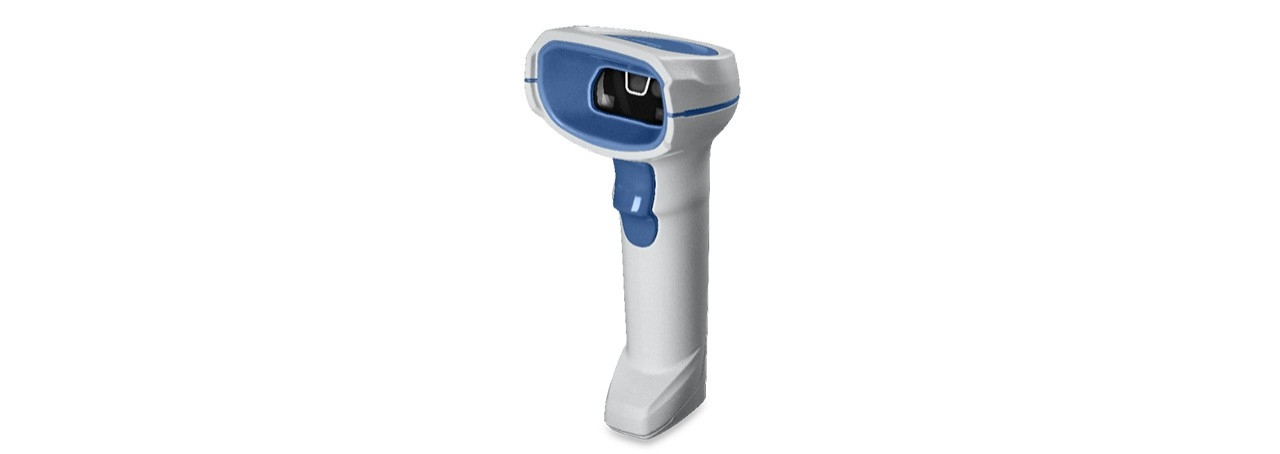

Type | Handheld bar code reader |
Sensor type | LED |
Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
Wavelength | 528 nm |
Scanner type | 1D/2D |
Tilt reading angle | 0 - 360° |
Pitch reading angle | -60 - 60° |
Yaw reading angle | -60 - 60° |
Ports & interfaces |
---|
Connectivity technology | Wireless |
Wireless range | 100 m |
Bluetooth version | 4.0 |
Bluetooth Low Energy (BLE) | Yes |
Standard interfaces | Bluetooth, USB |
Performance |
---|
Product colour | White |
International Protection (IP) code | IP42 |
Design |
---|
Product colour | White |
Type | Handheld bar code reader |
International Protection (IP) code | IP42 |
Power |
---|
Power source type | Battery |
Battery technology | Lithium-Ion (Li-Ion) |
Battery type | Built-in battery |
Number of batteries supported | 1 |
Battery capacity | 2500 mAh |
Number of reads per charge | 65000 |
Battery life | 83 h |
Input voltage | 5 V |
Weight & dimensions |
---|
Width | 66 mm |
Depth | 107 mm |
Height | 168 mm |
Weight | 235 g |
Operational conditions |
---|
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 5 - 95% |
Technical details |
---|
Harmonized System (HS) code | 84716070 |
Logistics data |
---|
Harmonized System (HS) code | 84716070 |
