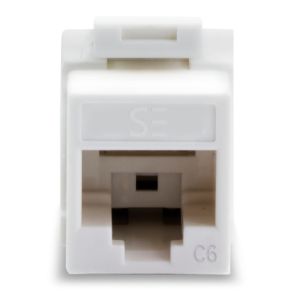

UKSUC6-10WH | Serveredge Universal Cat6, UTP, RJ45 Modular Keystone Jack

These modular keystone jacks are colour coded for both 568A and 568B standards and can be terminated using a 110 or Krone Tool. Clear wire retaining caps are supplied and can be used to provide additional cable strain relief.

PRODUCT SPECIFICATION
ELECTRICAL CHARACTERISTICS
Dielectric Strength: 750V RMS at 60Hz for 1 minute
Current Rating:    61.5 A maximum
Insulation Resistance: 1000MO minimum@500VDC
Contact Resistance: 1MO per contact
Temperature Range: Storage: -40°C to +85°C
                              Operation: 0°C to 70°C

MECHANICAL CHARACTERISTICS
Housing Material: PC
Insert Material: Fame Retardancy PBT
PCB Material: FR-4 T=1.6mm
Contact Material: Phosphor Bronze
                        Stamp pin T=0.30mm
Contact Material: Phosphor Bronze
                          T=0.50mm Tin plating
IDC Contact Material: 750 time min.
RJ45 Jack Life: 200 time min.
IDC Life: AWG 22-26

PRODUCT FEATURE
• Fully compliant to AS/NZS 3080:2003, ISO/IEC 11801 Edition 2 2002 and ANSI/TIA/EIA-568A/B Series Connecting Hardware Standards.
• Backward compatible with Category 5e products.
• Flexible locking tabs.
• UL 94V-O rated.
• Accepts solid 22-24 AWG diameter conductors.
• Universal colour-coding for 568A and 568B Standards.
• Lead frame technology eliminates the possibility of PCB failures.
