All stock codes associated to this product
W77P, YL65048, II353641, 6938818310278, IPY-W77P
| Features |
|---|
| Number of function keys | 6 |
| Dual-Tone Multi-Frequency (DTMF) modes | SIP info |
| International Protection (IP) code | IP54 |
| Wall mountable | Yes |
| Number of programmable keys | 2 |
| Mounting | Desk/Wall |
| Maximum outdoor range | 300 m |
| Maximum indoor range | 50 m |
| Keypad number of keys | 25 |
| Integrated voicemail | Yes |
| Handset type | Wireless handset |
| Handset | Yes |
| Firmware upgradeable | Yes |
| Ethernet cable | Yes |
| Device lock | Yes |
| DECT connectable | Yes |
| Product colour | Black |
| Base station | Yes |
| Backlight keypad | Yes |
| Hearing aid compatibility | Yes |
| Power |
|---|
| Battery voltage | 3.7 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1460 mAh |
| Talk time | 40 h |
| Standby time | 575 h |
| Power over Ethernet (PoE) | Yes |
| AC adapter input voltage | 100 - 240 V |
| Design |
|---|
| Product type | IP Phone |
| International Protection (IP) code | IP54 |
| Wall mountable | Yes |
| Mounting | Desk/Wall |
| Handset type | Wireless handset |
| Device lock | Yes |
| Product colour | Black |
| Backlight keypad | Yes |
| Protection features | Dust resistant, Scratch resistant, Shock resistant, Splash proof |
| Performance |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes | SIP info |
| Maximum outdoor range | 300 m |
| Maximum indoor range | 50 m |
| DECT connectable | Yes |
| Hearing aid compatibility | Yes |
| Phone features |
|---|
| Vibrating alert | Yes |
| Speed dialling | Yes |
| Redialing | Yes |
| Phonebook capacity | 1000 entries |
| Message-waiting indicator (MWI) | Yes |
| Intercom | Yes |
| Answering machine | Yes |
| Full duplex | Yes |
| Direct call | Yes |
| Conference call | Yes |
| Caller ID | Yes |
| Call waiting | Yes |
| Call transfer | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
| Anonymous call rejection | Yes |
| Anonymous call | Yes |
| Call history | Yes |
| Emergency call | Yes |
| Simultaneous ring | Yes |
| Management features |
|---|
| Number of function keys | 6 |
| Number of programmable keys | 2 |
| Keypad number of keys | 25 |
| Integrated voicemail | Yes |
| Firmware upgradeable | Yes |
| Display |
|---|
| Display resolution | 128 x 160 pixels |
| Display diagonal | 4.57 cm (1.8") |
| Display | TFT |
| Number of simultaneous touchpoints | 20 |
| Audio |
|---|
| Speakerphone | Yes |
| Number of melodies | 9 |
| Noise reduction | Yes |
| Comfort noise generation (CNG) | Yes |
| Automatic gain control | Yes |
| Network |
|---|
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| DHCP client | Yes |
| Ports &interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Battery |
|---|
| Battery voltage | 3.7 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1460 mAh |
| Operational conditions |
|---|
| Storage relative humidity (H-H) | -30 - 70% |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight &dimensions |
|---|
| Handset dimensions (WxDxH) | 157 x 51 x 24 mm |
| Base dimensions | 130 x 100 x 25.1 mm |
| Weight | 7.46 kg |
| Package weight | 8.14 kg |
| Packaging content |
|---|
| AC adapter included | Yes |
| Charger | Yes |
| Number of handles included | 1 pc(s) |
| Manual | Yes |
| Handset | Yes |
| Ethernet cable | Yes |
| Base station | Yes |

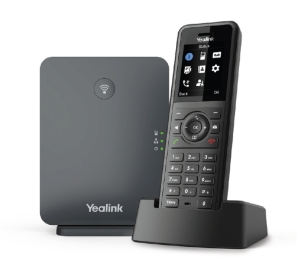

High-performance and Scalable for Productive Communication Supporting registration with up to 10 Yealink W57R DECT handsets, the W77P system is launched with robust processing capacity for up to 10 SIP accounts and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage
Reliable Audio Performance for Mobile Communication With over 20 years of experience in audio technology, Yealink applied a combination of state-of-the-art technologies to the W57R to provide users with crystal-clear calls. Even in complex or wireless interference-filled environments, the W57R could deliver a stable and high-quality audio experience that fits perfectly into everyday work.
A Protective Solution for Harsh Environments The Yealink W57R is a professional rugged DECT phone built to endure even in challenging work environments. -It can withstand a 3.5m drop without being damaged, and its durable rubber surface prevents slips, scratches, and everyday wear and tear. -There is also no need to worry about the Oops moments in daily life, as the W57R resists spills and splashes of liquids like coffee, soda, and juice. -Protection rating of 54 (IP54), dust doesn't stand a chance, either.
User-Friendly Features, Maximum Flexibility Best Battery Life Ever on Yealink Handsets Yealink W57R can support you all the time, even on long workdays, as it features up to 40 hours of talk time and 575 hours of standby time. You can do more on a single charge! If you forget to charge, don't worry. W57R also supports quick charging that 10-minutes charging time can outlast two hours of talk time!
No Perception Upgrade, Not Affecting Any Work The upgrade is always stuck at 99%? W57R saves you from this trouble! It does not affect the use of the handset during the firmware transfer and can perform calling, checking history and other functions as usual. Even if the handle is turned off or dropped, it can support disconnected transmission after reconnection.
Vibration Alarm, Every Call Counts Any new message can be critical to the business, and the vibration alarm feature makes sure that every call is noticed, even in cluttered and stressful environments. Missing calls will not be your concern.
Streamline Provisioningfor Labor and Time Costs Saving The W77P supports efficient provisioning and effortless mass deployment with Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism to help realize remote deployment, maintenance and upgrade. The new web portal for device management brings clear and intuitive interface to upgrade user experience.
Yealink Full-range of DECT Devices Solutions Yealink W77P DECT IP phone system is also compatible with Yealink whole series of DECT endpoints including handsets, conference phones and DD phones, offering additional choices for building up wireless communication network in various workspaces across small and medium size business.
