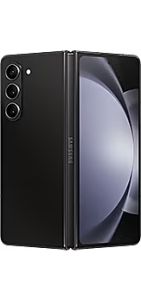

SM-F946BZKEATS | Samsung Galaxy Z Fold5 512GB Mobile Handset - Phantom Black

Processor

• CPU Speed
  3.36GHz, 2.8GHz, 2GHz
• CPU Type
  Octa-Core

Display

• Size (Main_Display)
  192.1mm (7.6" full rectangle) / 188.6mm (7.4" rounded corners)
• Resolution (Main Display)
  2176 x 1812 (QXGA+)
• Technology (Main Display)
  Dynamic AMOLED 2X
• Color Depth (Main Display)
  16M
• Max Refresh Rate (Main Display)
  120 Hz
• Size (Sub Display)
  157.3mm (6.2" full rectangle) / 154.8mm (6.1" rounded corners)
• Resolution (Sub Display)
  2316 x 904 (HD+)
• Technology (Sub Display)
  Dynamic AMOLED 2X
• Color Depth (Sub Display)
  16M

S Pen Support

• Yes

Camera

• Rear Camera - Resolution (Multiple)
  50.0 MP + 12.0 MP + 10.0 MP
• Rear Camera - F Number (Multiple)
  F1.8 , F2.2 , F2.4
• Rear Camera - Auto Focus
  Yes
• Rear Camera - OIS
  Yes
• Rear Camera - Zoom
  Optical Zoom at 3x , Digital Zoom up to 30x
• Under Display Camera - Resolution
  4.0 MP
• Under Display Camera - F Number
  F1.8
• Under Display Camera - Auto Focus
  No
• Under Display Camera - OIS
  No
• Rear Camera - Flash
  Yes
• Cover Camera - Resolution
  10.0 MP
• Cover Camera - F Number
  F2.2
• Cover Camera - Auto Focus
  No
• Video Recording Resolution
  UHD 8K (7680 x 4320)@30fps
• Slow Motion
  960fps @FHD, 240fps @FHD

Storage/Memory

• Memory_(GB)
  12
• Storage (GB)
  512
• Available Storage (GB)
  453.3

Network/Bearer

• SIM size
  Nano-SIM (4FF), Embedded-SIM
• Infra
  2G GSM, 3G WCDMA, 4G LTE FDD, 4G LTE TDD, 5G Sub6 FDD, 5G TDD Sub6
• 2G GSM
  GSM850, GSM900, DCS1800, PCS1900
• 3G UMTS
  B1(2100), B2(1900), B4(AWS), B5(850), B8(900)
• 4G FDD LTE
  B1(2100), B2(1900), B3(1800), B4(AWS), B5(850), B7(2600), B8(900), B12(700), B13(700), B17(700), B18(800), B19(800), B20(800), B25(1900), B26(850), B28(700), B66(AWS-3)
• 4G TDD LTE
  B38(2600), B39(1900), B40(2300), B41(2500)
• 5G FDD Sub6
  N1(2100), N2(1900), N3(1800), N5(850), N7(2600), N8(900), N12(700), N20(800), N25(1900), N28(700), N66(AWS-3)
• 5G TDD Sub6
  N38(2600), N40(2300), N41(2500), N77(3700), N78(3500)

Connectivity

• USB Interface
  USB Type-C
• USB Version
  USB 3.2 Gen 1
• Location Technology
  GPS, Glonass, Beidou, Galileo, QZSS
• Earjack
  USB Type-C
• MHL
  No
• Wi-Fi
  802.11 a/b/g/n/ac/ax 2.4G+5GHz+6GHz, HE160, MIMO, 1024-QAM
• Wi-Fi Direct
  Yes
• Bluetooth Version
  Bluetooth v5.3
• NFC
  Yes
• UWB (Ultra-Wideband)
  Yes
• PC Sync.
  Smart Switch (PC version)

OS

• Android

General Information

• Form Factor
  Folder

Sensors

• Accelerometer, Barometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Hall Sensor, Light Sensor, Proximity Sensor

Physical specification

• Dimension (HxWxD, mm)
  154.9 x 129.9 x 6.1
• Dimension when folded (HxWxD, mm)
  154.9 x 67.1 x 13.4
• Weight (g)
  253

Battery

• Internet Usage Time(LTE) (Hours)
  Up to 17
• Internet Usage Time(Wi-Fi) (Hours)
  Up to 18
• Video Playback Time (Hours, Wireless)
  Up to 21
• Battery Capacity (mAh, Typical)
  4400
• Removable
  No
• Audio Playback Time (Hours, Wireless)
  Up to 73
• Talk Time (4G LTE) (Hours)
  Up to 40

Audio and Video

• Stereo Support
  Yes
• Video Playing Format
  MP4, M4V, 3GP, 3G2, AVI, FLV, MKV, WEBM
• Video Playing Resolution
  UHD 8K (7680 x 4320)@60fps
• Audio Playing Format
  MP3, M4A, 3GA, AAC, OGG, OGA, WAV, AMR, AWB, FLAC, MID, MIDI, XMF, MXMF, IMY, RTTTL, RTX, OTA, DFF, DSF, APE

Services and Applications

• Gear Support
  Galaxy Buds2 Pro, Galaxy Buds Pro, Galaxy Buds Live, Galaxy Buds+, Galaxy Buds2, Galaxy Buds, Galaxy Fit2, Galaxy Fit e, Galaxy Fit, Galaxy Watch6, Galaxy Watch5, Galaxy Watch4, Galaxy Watch3, Galaxy Watch, Galaxy Watch Active2, Galaxy Watch Active, Gear Fit2 Pro, Gear Fit2, Gear Sport, Gear S3, Gear S2
• Samsung DeX Support
  Yes
• Bluetooth Hearing Aid Support
  Android Audio Streaming for Hearing Aid(ASHA)
• Mobile TV
  No
