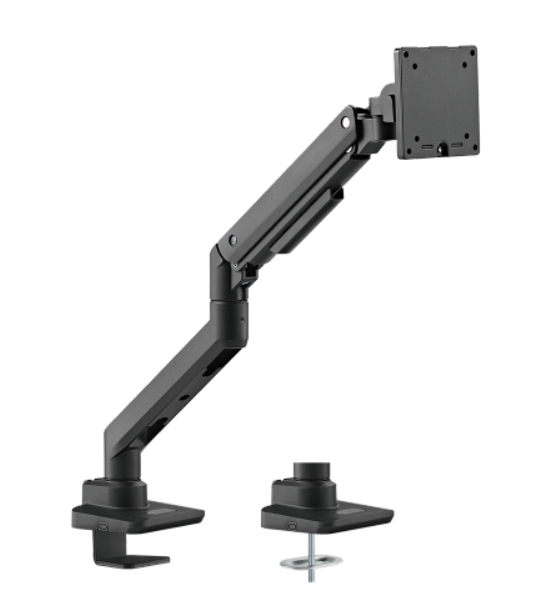

Brateck LDT69-C012 monitor mount / stand 124.5 cm (49") Black Desk, DESK-MOUNTED HEAVY-DUTY GAS SPRING MONITOR ARM Supports monitors up to 49’’ or weights ups to 20kg (44lbs)

IMG 1 of 1
Our Price:
$119.95
RRP:
$189.00
You Save:
$69.05
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
533523
(?) Brand:
Brateck
Manuf No:
LDT69-C012
LDT69C012
Shipping Weight:
3.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
LDT69C012, LDT69-C012, MABTLDT69C012B, MABT-LDT69-C012-B, 6956745172448

Brateck LDT69-C012 monitor mount / stand 124.5 cm (49") Black Desk

Manufacturer: Brateck
Category: Monitors & Accessories
Sub-Category: Monitor Mounts & Stands
SKU: LDT69-C012
EAN: 6956745172448

Description

Brateck Fabulous Desk-Mounted Heavy-Duty Gas Spring Monitor Arm Fit Most 17'-49' Monitor Up to 20KG VESA 75x75,100x100(Black)

FEATURES
●Weight up to 44 lbs: easily reposition large curved/flat monitors
●Detachable VESA Plate Design: enables easy installation
●180° Rotation Stop: prevents monitor arm from swinging into screens or walls
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●Installs from Top Side: installs entirely from above the desk surface
●Built-in Cable Management: for an organized and neat workspace

SPECIFICATIONS

Product Category: Gas Spring Monitor Arm
Rank: Premium
Material: Aluminum,Steel,Plastic
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 132x558x575mm (5.2'x22'x22.6')
Fit Screen Size: 17'-49'
Fit Curved Monitor: Yes
Screen Quantity: 1
Weight Capacity (per screen): 2~20kg (4.4lbs~44lbs)
VESA Compatible: 75x75,100x100
Tilt Range: +50°~-20°
Swivel Range: +90°~-90°
Screen Rotation: +180°~-180°
Arm Full Extension: 473mm (18.6')
Installation: Clamp,Grommet
Suggested Desktop Thickness: Clamp：12~50mm Grommet：12~50mm (Clamp：0.47'~2' Grommet：0.47'~2')
Quick Release VESA Plate: Yes
Cable Management: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Specifications

Mounting
Maximum weight capacity20 kg
Maximum screen size124.5 cm (49")
Number of displays supported1
Mounting typeDesk
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
MountingClamp
Extension arm (max)47.3 cm
Ergonomics
Swivel angle range-90 - 90°
Tilt angle range-20 - 50°
Angle of rotation180°
Tilt adjustmentYes
SwivellingYes
Design
Product colourBlack
Housing materialAluminium, Plastic, Steel
Weight & dimensions
Width132 mm
Depth558 mm
Height575 mm
Packaging data
Quantity per pack1 pc(s)
Other features
Mounting typeDesk
MountingClamp

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
