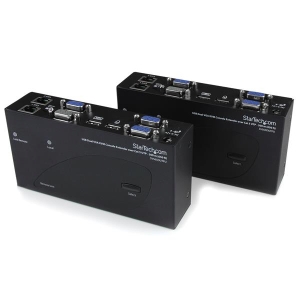

SV565DUTPU | Startech USB Dual VGA over Cat5 KVM Console Extender - 650

Technical details
Maximum transfer distance	200 m
Product colour	Black
Sustainability certificates	RoHS
Harmonized System (HS) code	84733020
Ports & interfaces
VGA (D-Sub) ports quantity	4
USB 2.0 ports quantity	12
RJ-45 ports quantity	2
DC-in jack	Yes
Weight & dimensions
Package width	239 mm
Package depth	367 mm
Package height	75 mm
Package weight	2.25 kg
Width	80 mm
Depth	155 mm
Height	40 mm
Weight	535 g
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-10 - 60  Â°C
Operating relative humidity (H-H)	0 - 80%
Colour
Product colour	Black
Packaging content
Manual	Yes
Cables included	AC, KVM
Logistics data
Harmonized System (HS) code	84733020

---

Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
