All stock codes associated to this product
ZQ61-AAWAA04-00, ZQ61AAWAA0400, 5640154

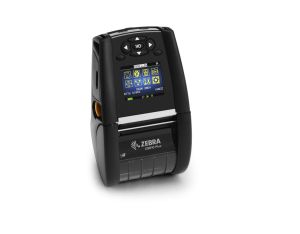

Zebra DT Printer ZQ610 Plus 2in/48mm English/Latin Trad Chinese Korean fonts Dual 802.11AC / BT4.x Linered platen 0.75in core Group A Belt clipWant to improve inventory management and customer service in your store? With the ZQ600/ZQ600 Plus Series mobile printer, you can. The ZQ600/ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600/ZQ600 Plus Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus Series easier to integrate, manage, setup and secure. The ZQ600/ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.
Premium Features for Maximum ProductivityThe Latest Wireless ConnectionsThe ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth Classic and Low Energy (BLE), your workers can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless AccessWith support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Instant Wake-Up Over Wi-FiThis intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600/ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a SnapThe ZQ600/ZQ600 Plus Series provides a large display, userfriendly interface and easily customized menu. The ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.
Business Tough-Built for All-Day Every Day Enterprise UseWhile the ZQ600/ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it longlasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Unsurpassed Battery Power ManagementDo More on a Single ChargeWith the ZQ600/ZQ600 Plus Series' high-capacity 3250 mAH (ZQ610 and ZQ610 Plus / ZQ620 and ZQ620 Plus) and 6800 mAH (ZQ630 and ZQ630 Plus) battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power
Features- Apple iOS, Android and Windows Mobile connectivity
- Direct thermal printing of barcodes, text and graphics
- CPCL, EPL and ZPL programming languages
- 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
- Built-in battery charger
- Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery
- Black mark and gap media sensing using fixed center position sensors
- Easy-to-use peel and present mode
- Label present sensor for issuing labels one at a time
- Tear bar for easy media dispensing
Battery Information
Technical Information
Application/Usage | Industrial |
Mobile |
Desktop |
Barcode Symbology Supported | UPC-A |
Interleaved 2 of 5 |
2 and 5 Digits Add-on |
AZTEC |
Codabar (NW-7) |
Code 128 |
Code 39 |
Code 93 |
Data Matrix |
EAN-13 |
EAN-8 |
FIM |
QR Code |
POSTNET |
PDF417 |
MSI PLESSEY |
Micro PDF-417 |
Maxi Code |
UPC E with 2 and 5 add on |
UCC/EAN 128 |
GS1 DataBar |
TLC 39 |
Maximum Print Width | 48 mm (1.89") |
Recommended Use | Label/Receipt Print |
Features | Water Resistant |
Shoulder Strap |
Dust Resistant |
Belt Clip |
Mobile Device Printing | Yes |
Print Color Capability | Monochrome |
Maximum Print Length | 813 mm |
Character Sets | Universal Font Scaling Technology (UFST) |
Agfa Monotype |
Optional Connectivity | USB |
Ethernet |
Serial (RS-232) |
Ingress Protection (IP) Rating | IP54 |
Maximum Print Resolution (dpi) | 203 |
Display &Graphics
Memory
Power Description
Software
Operating System Supported | Link-OS |
Fonts &Emulation
Language Emulation | ZBI 2.0 |
ZPL |
EPL |
CPCL |
Miscellaneous
Platform Supported | Android |
iOS |
PC |
Certifications &Standards | Emissions: - FCC Part 15
- Subpart B
- EN55022 Class-B
- EN60950
- EN55024
- VCCI class B
Susceptibility:
- EN55024
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
Safety:
|
Network &Communication
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11ac |
Near Field Communication (NFC) | Yes |
Physical Characteristics
Weight (Approximate) | 600 g |
Height | 72.4 mm |
Width | 91.4 mm |
Depth | 170.9 mm |
General Information
Product Type | Direct Thermal Printer |
Manufacturer Part Number | ZQ61-AAWAA04-00 |
Manufacturer Website Address | https://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | ZQ610 Plus |
Product Name | ZQ610 Plus Direct Thermal Printer |
Product Series | ZQ600 |
Brand Name | Zebra |
Media Types &Handling
Media Thickness | 165.1 µm |
Maximum Roll Diameter | 55.88 mm |
Media Type | Receipt |
Black Bar |
Tag |
Black Mark |
Linered Media |
Label |
Gap |
Die-cut Label |
Media Sensor | Gap Sensor |
Black Mark Sensor |
Maximum Label Width | 55.37 mm |
Maximum Label Length | 812.80 mm |
