All stock codes associated to this product
ARMPIVOT2USB3, 4936075, 0065030888349
Mounting |
---|
Desk thickness (min) | 1 cm |
Desk thickness (max) | 5 cm |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 8 kg |
Maximum screen size | 86.4 cm (34") |
Number of displays supported | 1 |
Mounting type | Desk |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Mounting | Clamp |
Extension arm (max) | 51.4 cm |
Ergonomics |
---|
Height adjustment | Yes |
Swivel angle | 90 ° |
Tilt angle range | -90 - 90 ° |
Angle of rotation | 90 ° |
Design |
---|
Product colour | Black |
Certification | CE, REACH |
Housing material | Aluminium |
Technical details |
---|
Sustainability certificates | RoHS |
Weight & dimensions |
---|
Width | 35 mm |
Depth | 594 mm |
Height | 620 mm |
Weight | 3.25 kg |
Package width | 435 mm |
Package depth | 240 mm |
Package height | 117 mm |
Package weight | 4.15 kg |
Packaging content |
---|
Wrench type | Hexagonal wrench |
Screws included | Yes |
Number of screws | 9 |
Number of washers included | 4 |
Grommet plate included | Yes |
Number of cable clips | 1 |
Packaging data |
---|
Wrench type | Hexagonal wrench |
Screws included | Yes |
Logistics data |
---|
Master (outer) case width | 500 mm |
Master (outer) case length | 450 mm |
Master (outer) case height | 375 mm |
Products per master (outer) case | 6 pc(s) |
Harmonized System (HS) code | 85299097 |
Other features |
---|
Mounting type | Desk |
Mounting | Clamp |
Monitor Mount | For up to 34" VESA Mount Displays | Integrated Cable Management | 2-Year Warranty

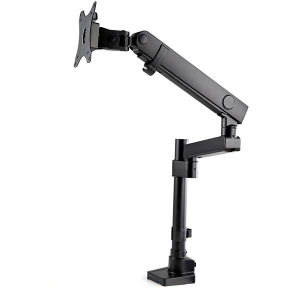

Save space with this premium desk mount monitor arm, by suspending your screen above your desk.
Versatile Use
Use the single arm monitor mount to mount your VESA mount monitor (75x75, 100x100) up to 34".
Sleek and Stable Design
Made of aluminum, the VESA mount monitor stand provides stable support for your display, with a weight capacity of up to 17.6 lb. (8 kg). Built-in USB 3.0 ports provide convenient connectivity for your computer.
The arm extends 20.2" (514 mm) to allow a wide range of motion. Move the monitor holder arm effortlessly side to side to adjust your screen.
With its articulating arm, the monitor mount makes it easy to find the right viewing angle. Pan +90/-90 degrees left or right and tilt your display +90/-90 degrees up or down. For landscape or portrait viewing, rotate your display +90/-90 degrees.
Height Adjustment
Work in comfort with this height adjustable  monitor stand that  lets you raise or lower the monitor arm along the pole, up to 24.4" (620 mm).
The Choice of IT Pros Since 1985 Â Â
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales
The ARMPIVOT2USB3 Â is backed by a StarTech.com 2-year warranty and free lifetime technical support. Â
The StarTech.com Advantage
- 34 INCH HEAVY DUTY MONITOR MOUNT: VESA 75x75/100x100mm compatible articulating single monitor mount supports 1 display up to 34" (17.6lb/8kg) w/ full motion articulation & 2 USB 3.0 passthrough ports
- EASY INSTALLATION: Tighten c-clamp from top w/ incl. tool or grommet mount to secure to desktop (10mm-50mm); Easily mount display w/ detachable VESA plate; tools incl. to adjust articulation tension
- WIDE RANGE OF MOTION: Ergonomic monitor arm increases comfort & productivity w/ +/-90 ° tilt, +/-90 ° swivel, 90 ° rotating screen (landscape/portrait) & toolless adjustable height along 11.8"/300mm pole
