All stock codes associated to this product
N6PATC5MRD, 2682292, 0065030855730
| Features |
|---|
| Product colour | Red |
| Cable rating | CMG (CM) |
| Snagless cable boot | Yes |
| Conductor material | Copper |
| Cable length | 5 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Frequency | 650 MHz |
| Conductor type | Stranded |
| AWG wire size | 24 |
| Plug and Play | Yes |
| Certification | CE, ETL, REACH |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) | Yes |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Technical details |
|---|
| Cable rating | CMG (CM) |
| Sustainability certificates | RoHS |
| Weight & dimensions |
|---|
| Weight | 202 g |
| Packaging data |
|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 212 g |
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 275 mm |
| Harmonized System (HS) code | 84733080 |

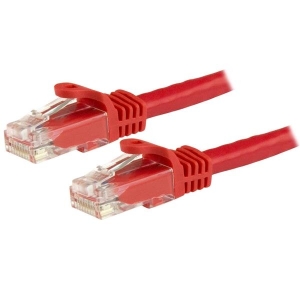

Make Power-over-Ethernet-capable Gigabit network connections
The N6PATC5MRD Â Cat 6 Patch Cable (5m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable red PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The StarTech.com Advantage
- 50-micron gold connectors ensure optimum conductivity while eliminating signal loss due to oxidation or corrosion
- RJ45 connector clip protectors help keep the plugs from snagging while routing the cable, for easier Cat 6 cable runs
- Guaranteed reliability
