All stock codes associated to this product
NETRS2322P, 3285178, 0065030864145
| Technical details |
|---|
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Data bits | 7, 8 |
| Auto MDI/MDI-X | Yes |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Certification | CE, FCC |
| Baud rate | 460.8 Kbit/s |
| Remote management | Yes |
| Parity bit | Even, Mark, Odd, Space |
| Sustainability certificates | RoHS |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Weight & dimensions |
|---|
| Package weight | 685 g |
| Weight | 320 g |
| Package width | 150 mm |
| Package height | 53 mm |
| Dimensions (WxDxH) | 81 x 112 x 23 mm |
| Power |
|---|
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3 A |
| Compatible power plug types | AU, EU, UK, US |
| Input current | 1.5 A |
| Input voltage | 100 - 240 V |
| Operational conditions |
|---|
| Storage temperature (T-T) | -45 - 130 °C |
| Operating temperature (T-T) | 0 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Protocols |
|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet |
| Indication |
|---|
| LED indicators | Activity, LAN, Link, Status |
| Software |
|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
| Packaging content |
|---|
| User guide | Yes |
| AC adapter included | Yes |
| Design |
|---|
| Housing material | Steel |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Product colour | Black |
| Certification | CE, FCC |
| Sustainability |
|---|
| Sustainability certificates | RoHS |

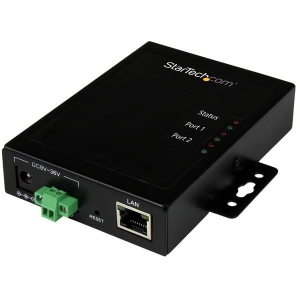

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.
Flexible installation, in a range of environmentsIf you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
Backup power keeps your devices connectedWith redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
Completely customizableThis highly customizable device server is easy to configure to suit your application. For easy setup, Windows ® users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux ®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
