All stock codes associated to this product
N6PATC50CMYL, 3517614, 0065030867634
| Features |
|---|
| Product colour | Yellow |
| Cable rating | CMG (CM) |
| Snagless cable boot | Yes |
| Conductor material | Copper |
| Cable length | 0.5 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Frequency | 650 MHz |
| Conductor type | Stranded |
| AWG wire size | 24 |
| Plug and Play | Yes |
| Certification | ETL, CE, REACH |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) | Yes |
| Harmonized System (HS) code | 84733080 |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Technical details |
|---|
| Cable rating | CMG (CM) |
| Sustainability certificates | RoHS |
| Weight & dimensions |
|---|
| Weight | 26 g |
| Packaging data |
|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 14 mm |
| Package weight | 35 g |
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 275 mm |
| Harmonized System (HS) code | 84733080 |
Make Gigabit Ethernet connections with PoE support
This Cat6 Â cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need

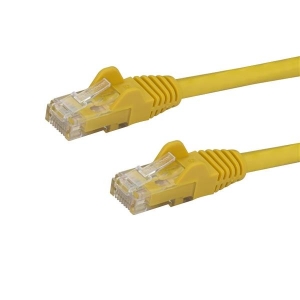

This 0.5-meter yellow patch cable is perfect for use in server closets, patch panels and with Ethernet hubs. The cable is intended for short-distance applications such as point-to-point in-rack and across-rack network switch and server connections.
For easier network installations, our Cat6 Â patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.
Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moulded  boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gauge  wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG Â copper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATC50CMYL is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
The StarTech.com Advantage
- High-quality 24 AWG copper wire
- ETL verified
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 50m; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6 & ETL Verified
