All stock codes associated to this product
FPCEILPTBLP, 3711765, 0065030870412
| Mounting |
|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Maximum weight capacity | 50 kg |
| Number of displays supported | 2 |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Ergonomics |
|---|
| Height adjustment | Yes |
| Height adjustment range | 2500 - 3000 mm |
| Swivel angle range | -180 - 180 ° |
| Tilt angle range | -25 - 0 ° |
| Cable management | Yes |
| Design |
|---|
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, REACH |
| Anti-theft function | No |
| Weight & dimensions |
|---|
| Width | 435 mm |
| Depth | 680 mm |
| Height | 3200 mm |
| Weight | 10 kg |
| Depth (max) | 68 cm |
| Package dimensions (WxDxH) | 320 x 1270 x 115 mm |
| Package width | 320 mm |
| Package depth | 1300 mm |
| Package height | 115 mm |
| Package weight | 10.8 kg |
| Packaging data |
|---|
| Package width | 320 mm |
| Package depth | 1300 mm |
| Package height | 115 mm |
| Package weight | 10.8 kg |
| Packaging content |
|---|
| Wrench included | Yes |
| Washers included | Yes |
| Spacer included | Yes |
| Screws included | Yes |
| Number of washers included | 8 |
| Number of spacers included | 16 |
| Number of screws | 28 |
| Manual | Yes |
| Technical details |
|---|
| Package dimensions (WxDxH) | 320 x 1270 x 115 mm |
| Sustainability certificates | RoHS |
| Certificates |
|---|
| Certification | CE, REACH |
| Logistics data |
|---|
| Master (outer) case width | 320 mm |
| Master (outer) case length | 1270 mm |
| Master (outer) case height | 115 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85299097 |

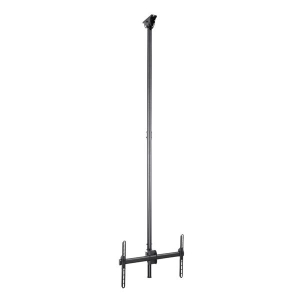

Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in lobbies, entrances or other areas with high ceilings.
Adjustable Height
With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 8.2 to 9.84 ft. (2.5 to 3 m), with a total lift (height extension) of 19.6" (.5 m).
Swivels to Suit Your Ceiling
The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
Hook-and-Mount Design
Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBLP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Save space by suspending your 32" to 75" flat-screen TV from the ceiling; Supports TVs up to 110 lb.(50 kg)
- Long pole with min-max length extension of 8.2 to 9.8' (2.5 to 3 m) for versatile use
- Ceiling TV mount swivels +60 /-60 degrees to adjust to sloped or level ceilings
