All stock codes associated to this product
CDP2DP141MB, 4545048, 0065030881753
Features |
---|
DisplayPort version | 1.4 |
Chipset | STM32F072CBY6TR |
Cable length | 1 m |
Connector 1 | DisplayPort |
Connector 2 | USB Type-C |
Connector 1 gender | Male |
Connector 2 gender | Male |
Product colour | Black |
Bandwidth | 32400 MB/s |
Maximum resolution | 7680 x 4320 pixels |
Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320 |
HDCP | Yes |
Certification | CE, FCC, REACH |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Maximum refresh rate | 120 Hz |
HDCP version | 1.4/2.2 |
High Dynamic Range (HDR) supported | Yes |
Supported audio channels | 7.1 |
Operational conditions |
---|
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 80 - 90% |
Sustainability |
---|
Sustainability certificates | RoHS |
Technical details |
---|
Sustainability certificates | RoHS |
Harmonized System (HS) code | 84733080 |
Other features |
---|
Width | 200 mm |
Height | 11 mm |
Depth | 1000 mm |
Weight & dimensions |
---|
Weight | 38 g |
Package width | 200 mm |
Package depth | 220 mm |
Package weight | 48 g |
Width | 200 mm |
Height | 11 mm |
Depth | 1000 mm |
Packaging data |
---|
Package width | 200 mm |
Package depth | 220 mm |
Package weight | 48 g |
Quantity per pack | 1 pc(s) |
Packaging content |
---|
Quantity per pack | 1 pc(s) |
Logistics data |
---|
Master (outer) case width | 500 mm |
Master (outer) case length | 330 mm |
Master (outer) case height | 220 mm |
Products per master (outer) case | 90 pc(s) |
Harmonized System (HS) code | 84733080 |

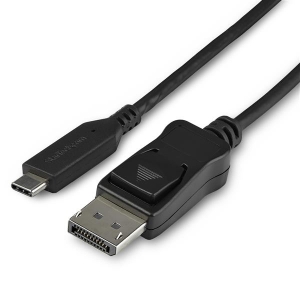

USB-C Video Adapter Cable | Thunderbolt 3 Compatible | HBR3
This  USB-C to DisplayPort 1.4 cable  lets you connect your  USB Type-C device to a  DisplayPort monitor with just one cable, providing  you  with a  convenient, clutter-free solution. Â
Incredible Picture Quality
Supporting  four times the resolution of 4K, this  8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
With cutting-edge picture quality, this cable is ideal for:
Displaying crisp digital signage walls
Creating eye-catching visuals for photography and videography
The USB-C to DP cable  is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Resolution
Frequency Â
Support without DSC
Support with DSC
HDR10 without DSC
HDR10 with DSC
1080p (1920x1080)
60
P
P
P
P
120
P
P
P
P
240
P
P
P
P
4K (3840x2160)
60
P
P
P
P
120
P
P
O
P
240
O
P
O
P
8K (7680x4320)
30
P
P
O
P
60
O
P
O
P
120
O
O
O
O
Clutter-Free Installation
At 3.3 ft. (1 m) in length, this DisplayPort adapter cable delivers a compact connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a longer length, we also offer a 6 ft. (1.8 m) DisplayPort cable, enabling you to customize your connection needs. Â
Hassle-Free Setup Â
To ensure easy operation, this DisplayPort converter cable  supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP141MB Â is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Â
Your USB-C device must support DP Alt Mode to work with this adapter cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter cable compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p
- EXPERIENCE 8K: USB C to DisplayPort 1.4 cable was tested w/ 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators
- INTEGRATED VIDEO ADAPTER CABLE: This 3.3'/1m USB-C to DP cable minimizes signal loss & potential failure points w/ a latching DP connector, Level 4 Air/Contact ESD immunity/protection & EMI shielding
